- Product Model DGD0506AFN-7
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC GATE DRV HALF-BRDG DFN3030-10
- Classification Gate Drivers
-
PDF
Technical Details

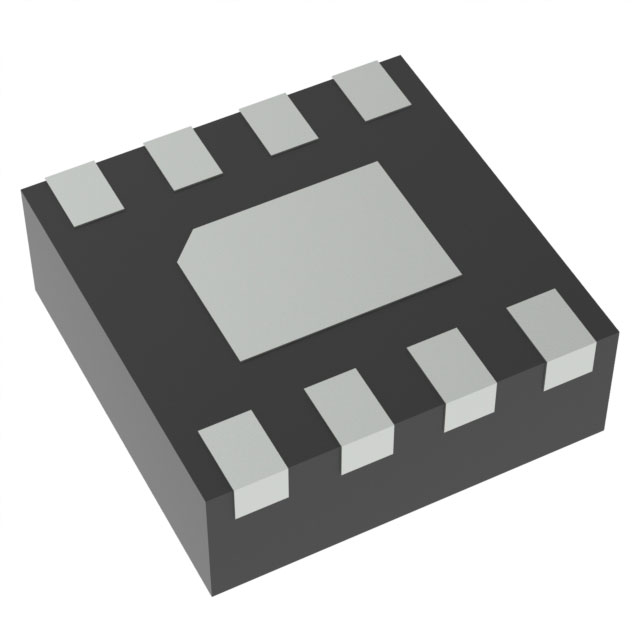

- Package / Case 10-WFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 8V ~ 14V
- Input Type CMOS/TTL
- High Side Voltage - Max (Bootstrap) 50 V
- Supplier Device Package W-DFN3030-10
- Rise / Fall Time (Typ) 17ns, 12ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.4V
- Current - Peak Output (Source, Sink) 1.5A, 2A
- DigiKey Programmable Not Verified
