- Product Model IR2184PBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details

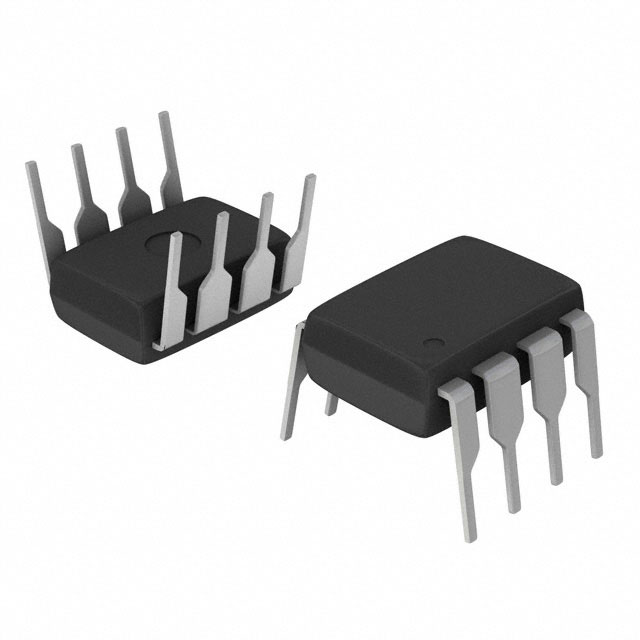

- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-PDIP
- Rise / Fall Time (Typ) 40ns, 20ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.7V
- Current - Peak Output (Source, Sink) 1.9A, 2.3A
- DigiKey Programmable Not Verified
