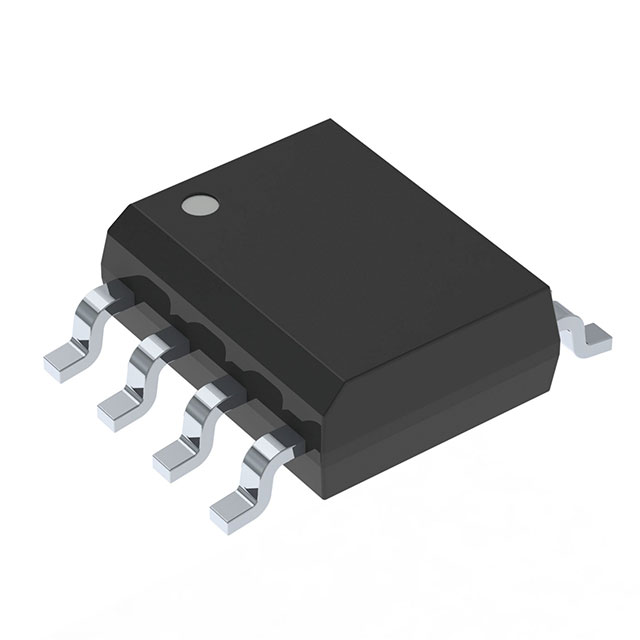

- Product Model IR2085STRPBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 15V
- Input Type RC Input Circuit
- High Side Voltage - Max (Bootstrap) 100 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 40ns, 20ns
- Channel Type Independent
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Current - Peak Output (Source, Sink) 1A, 1A
- Grade Automotive
- DigiKey Programmable Not Verified
- Qualification AEC-Q100
