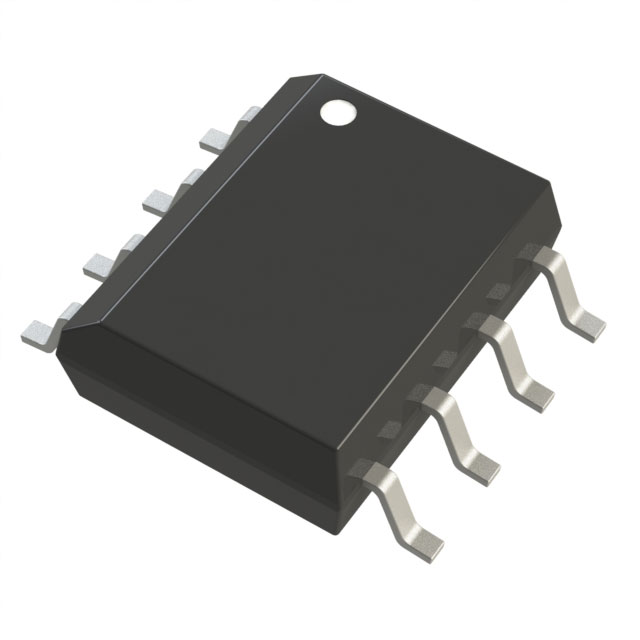

- Product Model L6498DTR
- Brand STMicroelectronics
- RoHS Yes
- Description IC GATE DRVR HI-SIDE/LO-SIDE 8SO
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type CMOS/TTL
- High Side Voltage - Max (Bootstrap) 500 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 25ns, 25ns
- Channel Type Independent
- Driven Configuration High-Side or Low-Side
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.45V, 2V
- Current - Peak Output (Source, Sink) 2A, 2.5A
- DigiKey Programmable Not Verified
