- Product Model IRS2817DSTRPBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC HVIC 8SOIC N
- Classification Gate Drivers
-
PDF
Technical Details

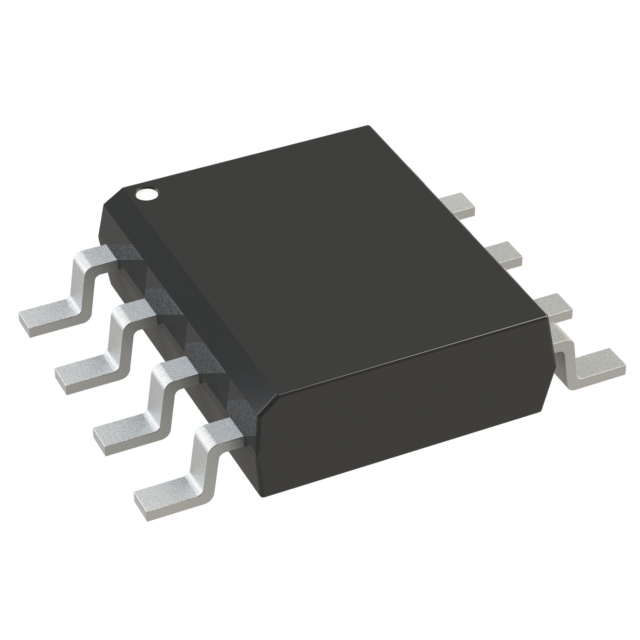

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 600 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 150ns, 50ns
- Channel Type Independent
- Driven Configuration High-Side and Low-Side
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.2 V
- Current - Peak Output (Source, Sink) 200mA, 350mA
- DigiKey Programmable Not Verified
