Technical Details

• Features Slew Rate Controlled

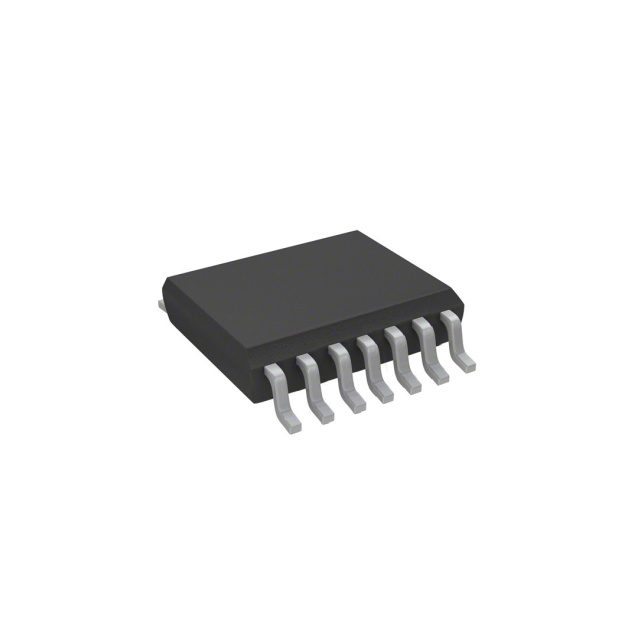

• Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 2
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration High Side
• Rds On (Typ) 14.5mOhm
• Input Type Non-Inverting
• Voltage - Load 6V ~ 18V
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 4.5A
• Ratio - Input:Output 1:1
• Supplier Device Package PG-TSDSO-14-22
• Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
• Grade Automotive
• Qualification AEC-Q100
