- Product Model MIC4102YM
- Brand Roving Networks (Microchip Technology)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details

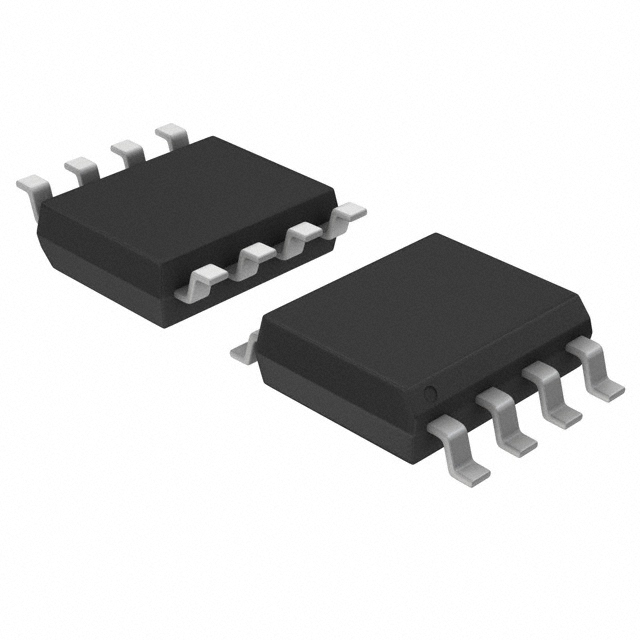

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 9V ~ 16V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 118 V
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 330ns, 200ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.2V
- Current - Peak Output (Source, Sink) 2A, 3A
- DigiKey Programmable Not Verified
