- Product Model CSD95495QVM
- Brand Texas Instruments
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 50A 18VSON
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit

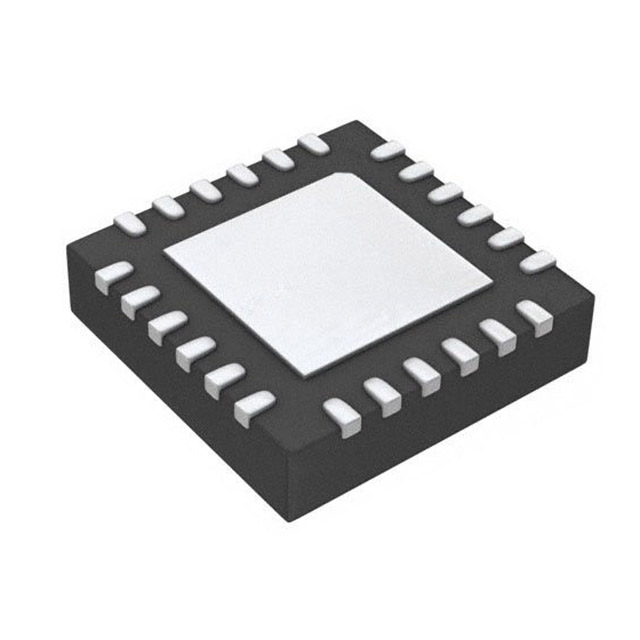

- Package / Case 18-PowerTFDFN
- Mounting Type Surface Mount
- Interface PWM
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (3)
- Voltage - Supply 4.5V ~ 5.5V
- Applications Synchronous Buck Converters
- Current - Output / Channel 50A
- Current - Peak Output 75A
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 16V
- Supplier Device Package 18-VSON (5x4)
- Fault Protection Shoot-Through
- Load Type Inductive, Capacitive
