- Product Model LTC7004MPMSE#PBF
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC GATE DRVR HIGH-SIDE 10MSOP
- Classification Gate Drivers
-
PDF
Technical Details

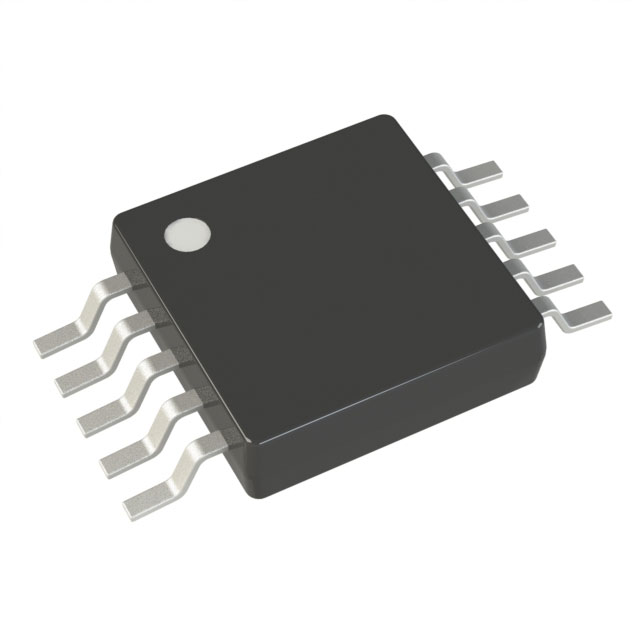

- Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -55°C ~ 150°C (TJ)
- Voltage - Supply 3.5V ~ 15V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 60 V
- Supplier Device Package 10-MSOP-EP
- Rise / Fall Time (Typ) 90ns, 40ns
- Channel Type Single
- Driven Configuration High-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- DigiKey Programmable Not Verified
