- Product Model MPQ1530DQ-LF-Z
- Brand MPS (Monolithic Power Systems)
- RoHS Yes
- Description IC REG LINEAR POS/NEG ADJ 16QFN
- Classification Voltage Regulators - Linear + Switching
-
PDF
Technical Details

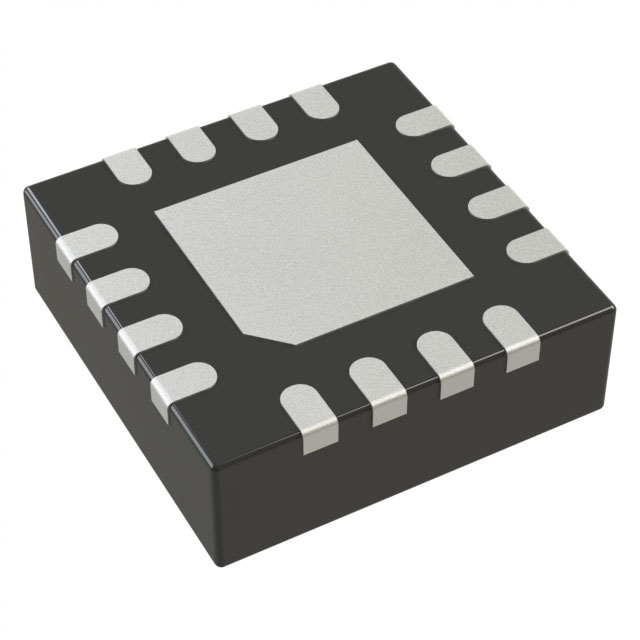

- Package / Case 16-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 2.7V ~ 5.5V
- Frequency - Switching 1.4MHz
- Topology Step-Up (Boost) (1), Linear (LDO) (1), Linear (LDO) (1)
- Supplier Device Package 16-QFN (3x3)
- Voltage/Current - Output 1 22V, 3.6A
- Voltage/Current - Output 2 -20V, 20mA
- Voltage/Current - Output 3 38V, 20mA
- w/LED Driver No
- w/Supervisor No
- w/Sequencer Yes
- Number of Outputs 3
