- Product Model L9960TR
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDGE DRIVER PWRSSO36
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Inventory:1500
Technical Details
- Features Slew Rate Controlled

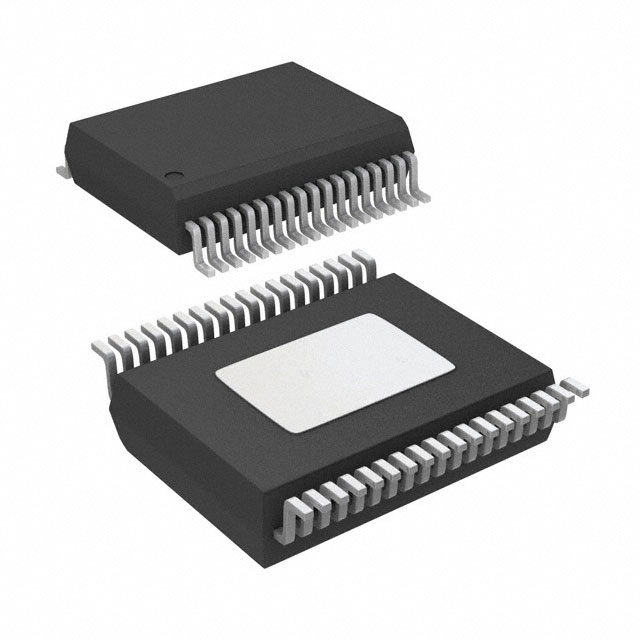

- Package / Case 36-PowerBFSOP (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Interface SPI
- Operating Temperature -40°C ~ 170°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 4.5V ~ 5.5V
- Rds On (Typ) 400mOhm LS + HS
- Applications General Purpose
- Technology Power MOSFET
- Voltage - Load 4.5V ~ 28V
- Supplier Device Package PowerSSO-36 EPD
- Fault Protection Over Temperature, Short Circuit
- Load Type Inductive, Capacitive, Resistive
- Grade Automotive
- Qualification AEC-Q100
