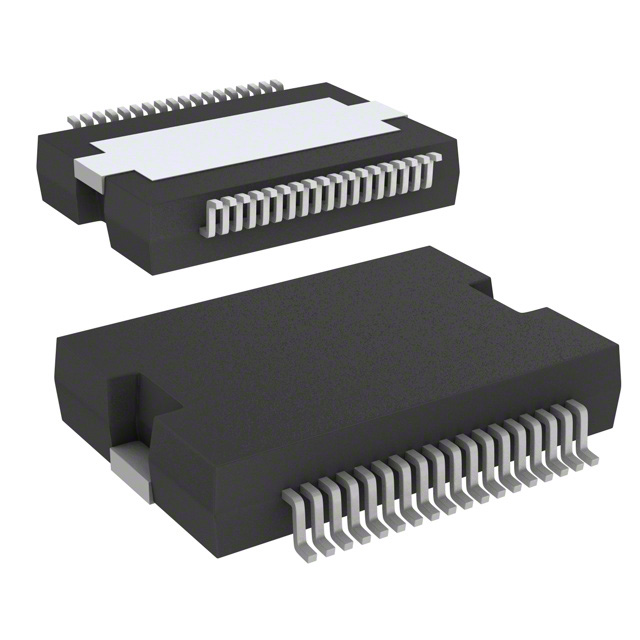

- Product Model L6207PD
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDG DRV 2.8A 36POWERSO
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Inventory:1865
Technical Details
- Features Bootstrap Circuit
- Package / Case 36-PowerBSSOP (0.433", 11.00mm Width)
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -25°C ~ 125°C (TJ)
- Output Configuration Half Bridge (4)
- Voltage - Supply 8V ~ 52V
- Rds On (Typ) 300mOhm
- Applications DC Motors, Stepper Motors, Voltage Regulators
- Current - Output / Channel 2.8A
- Current - Peak Output 5.6A
- Technology DMOS
- Voltage - Load 8V ~ 52V
- Supplier Device Package PowerSO-36 Slug Up
- Fault Protection Current Limiting, Over Temperature, UVLO
- Load Type Inductive
