- Product Model L6206D
- Brand STMicroelectronics
- RoHS Yes
- Description IC HALF BRIDGE DRIVER 2.8A 24SO
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details
- Features Bootstrap Circuit

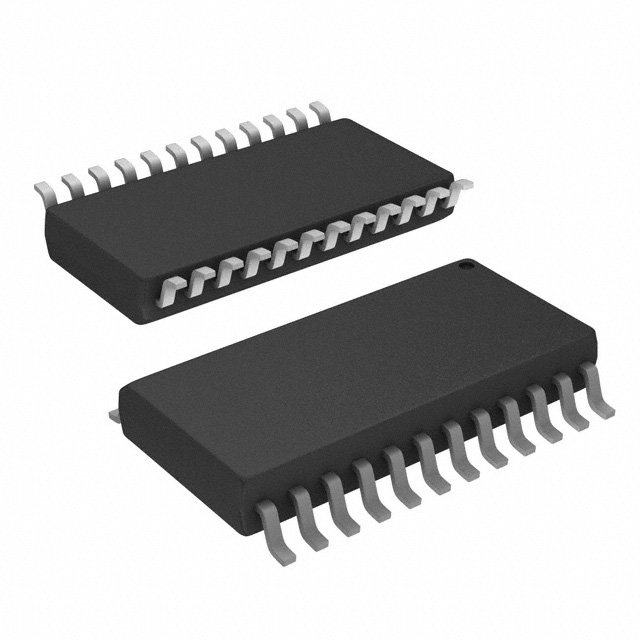

- Package / Case 24-SOIC (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -25°C ~ 125°C (TJ)
- Output Configuration Half Bridge (4)
- Voltage - Supply 8V ~ 52V
- Rds On (Typ) 300mOhm
- Applications DC Motors, Stepper Motors, Voltage Regulators
- Current - Output / Channel 2.8A
- Current - Peak Output 5.6A
- Technology BCDMOS
- Voltage - Load 8V ~ 52V
- Supplier Device Package 24-SO
- Fault Protection Current Limiting, Over Temperature, UVLO
- Load Type Inductive
