- Product Model RT8525GS
- Brand Richtek
- RoHS Yes
- Description IC REG BOOST CTRLR DIM SOP-14
- Classification DC DC Switching Controllers
-
PDF
Technical Details

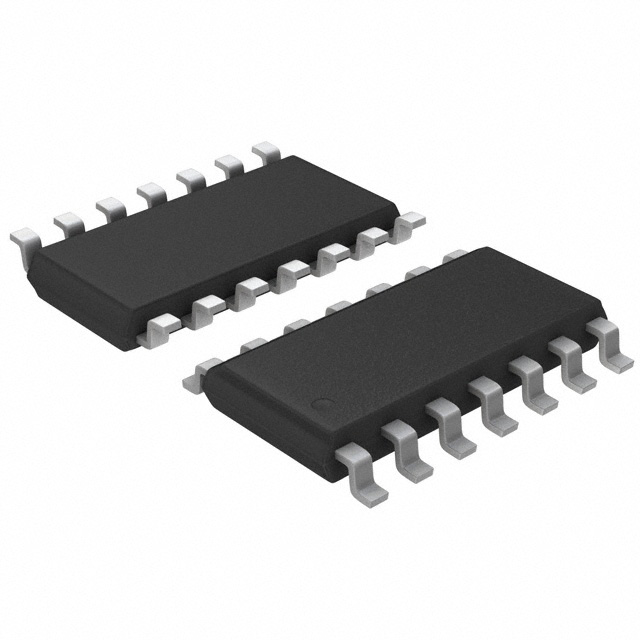

- Package / Case 14-SOIC (0.154", 3.90mm Width)
- Output Type PWM Signal
- Mounting Type Surface Mount
- Function Step-Up
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration Positive
- Frequency - Switching 200kHz
- Topology Boost
- Voltage - Supply (Vcc/Vdd) 4.5V ~ 29V
- Supplier Device Package 14-SOP
- Synchronous Rectifier No
- Control Features Dimming, Enable, Frequency Control, Soft Start
- Output Phases 1
- Duty Cycle (Max) 90%
- Clock Sync No
- Number of Outputs 1
