- Product Model AP22814ASN-7
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC PWR SWITCH P-CHAN 1:1 6UDFN
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Load Discharge, Status Flag

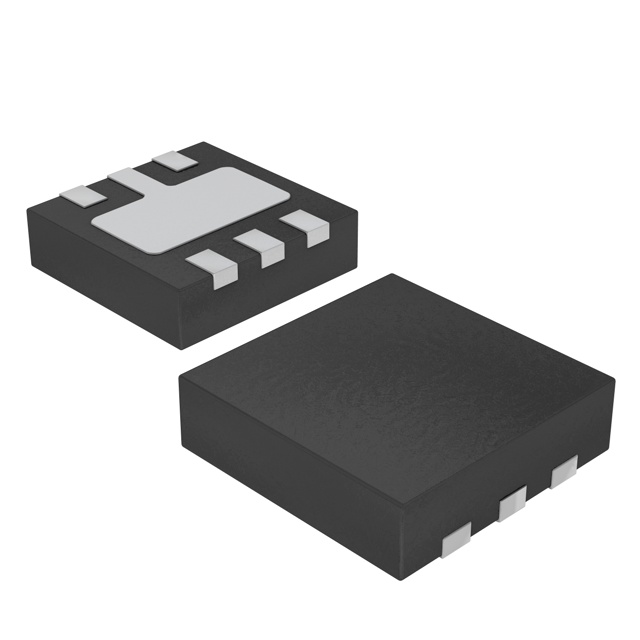

- Package / Case 6-UDFN Exposed Pad
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type USB Switch
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 50mOhm
- Input Type Non-Inverting
- Voltage - Load 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 3A
- Ratio - Input:Output 1:1
- Supplier Device Package U-DFN2020-6
- Fault Protection Current Limiting (Fixed), Over Temperature, UVLO
Related Products

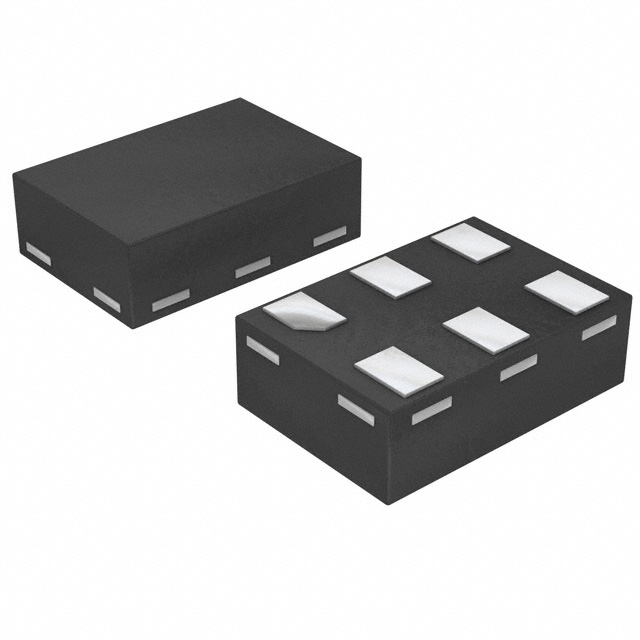

IC BUFFER NON-INVERT 3.6V 6XSON
