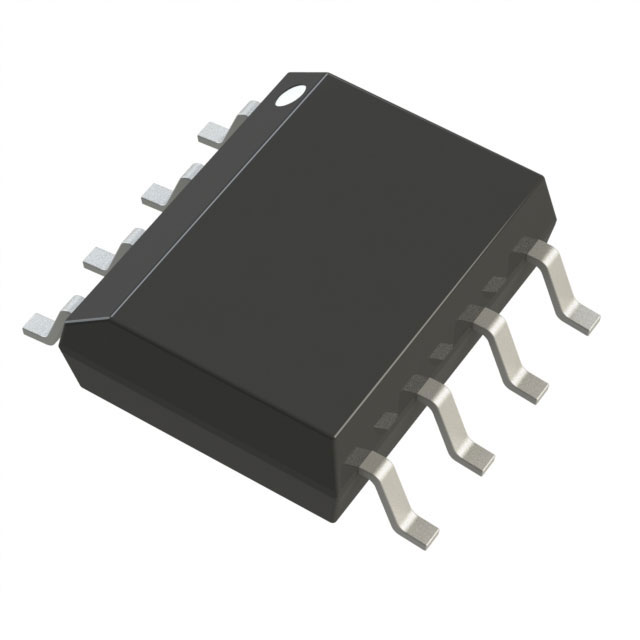

- Product Model AD5322BRMZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 12BIT V-OUT 10MSOP
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details
- Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Output Type Voltage - Buffered
- Mounting Type Surface Mount
- Number of Bits 12
- Data Interface SPI, DSP
- Reference Type External
- Operating Temperature -40°C ~ 105°C
- Voltage - Supply, Analog 2.5V ~ 5.5V
- Voltage - Supply, Digital 2.5V ~ 5.5V
- Settling Time 10µs
- Supplier Device Package 10-MSOP
- Architecture String DAC
- Number of D/A Converters 2
- INL/DNL (LSB) ±2, ±0.2
- Differential Output No
- DigiKey Programmable Not Verified
