- Product Model IRS2005MTRPBF
- Brand IR (Infineon Technologies)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 14MLPQ
- Classification Gate Drivers
-
PDF
Inventory:7035
Technical Details

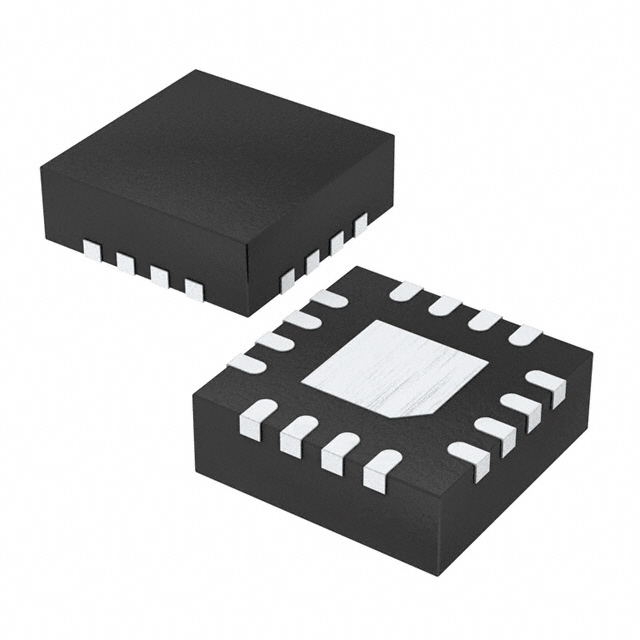

- Package / Case 14-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 10V ~ 20V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 200 V
- Supplier Device Package 14-MLPQ (4x4)
- Rise / Fall Time (Typ) 70ns, 30ns
- Channel Type Independent
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type IGBT, N-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 2.5V
- Current - Peak Output (Source, Sink) 290mA, 600mA
- DigiKey Programmable Not Verified
