Technical Details

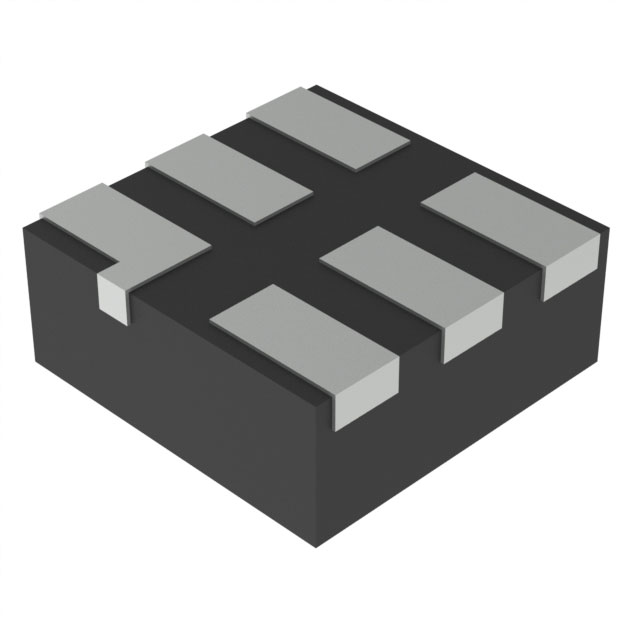

• Package / Case 6-XFDFN
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 125°C (TA)
• On-State Resistance (Max) 10Ohm
• -3db Bandwidth 300MHz
• Supplier Device Package X2-DFN1410-6
• Voltage - Supply, Single (V+) 1.65V ~ 5.5V
• Charge Injection 7pC
• Crosstalk -42dB @ 10MHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 250mOhm
• Switch Time (Ton, Toff) (Max) 4ns, 7.5ns
• Channel Capacitance (CS(off), CD(off)) 6pF
• Current - Leakage (IS(off)) (Max) 1µA
• Number of Circuits 1
