- Product Model NCP81074BDR2G
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details

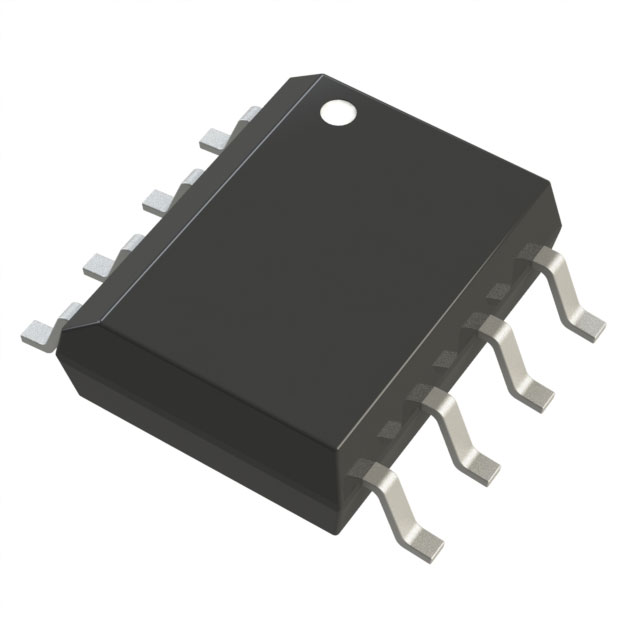

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 20V
- Input Type Inverting, Non-Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 4ns, 4ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- Current - Peak Output (Source, Sink) 10A, 10A
- DigiKey Programmable Not Verified
