- Product Model DRV8332HDDV
- Brand Texas Instruments
- RoHS Yes
- Description IC HALF BRIDGE DRVR 5A 44HTSSOP
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Inventory:1535
Technical Details
- Features Bootstrap Circuit, Status Flag
- Package / Case 44-PowerTSSOP (0.244", 6.20mm Width)
- Mounting Type Surface Mount
- Interface PWM
- Operating Temperature -55°C ~ 175°C (TJ)
- Output Configuration Half Bridge (3)
- Voltage - Supply 10.8V ~ 13.2V
- Rds On (Typ) 260mOhm LS, 260mOhm HS
- Applications DC Motors, General Purpose
- Current - Output / Channel 5A
- Current - Peak Output 7A
- Technology Power MOSFET
- Voltage - Load 0V ~ 52.5V
- Supplier Device Package 44-HTSSOP
- Fault Protection Current Limiting, Over Temperature, Short Circuit, UVLO
- Load Type Inductive
Related Products

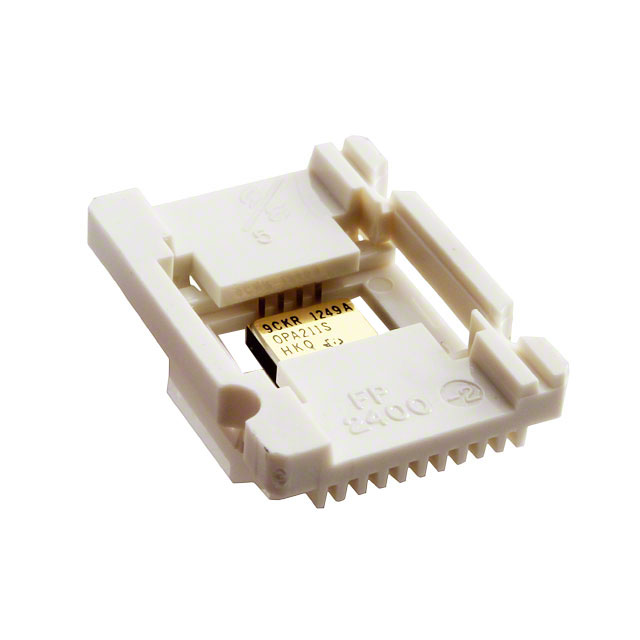

IC MUX 8:1 10OHM 16CFLATPACK
Inventory: 2

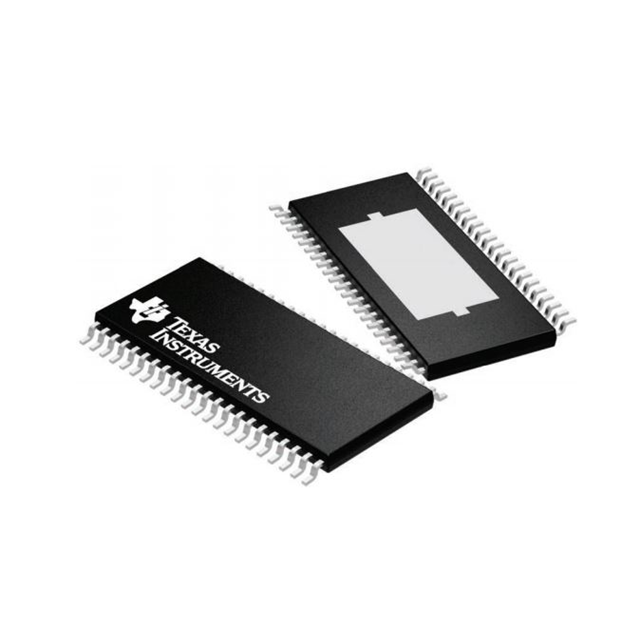

IC HALF BRIDGE DRV 3.5A 44HTSSOP
Inventory: 6722
IC HALF BRIDGE DRV 3.5A 44HTSSOP
Inventory: 6815

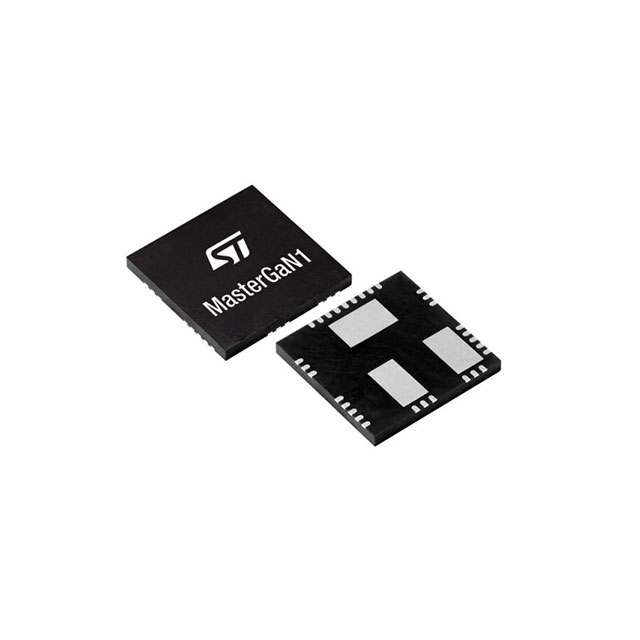

IC HALF BRIDGE DRIVER 4A 31QFN
