- Product Model TMC2130-LA-T
- Brand Maxim Integrated / Analog Devices
- RoHS Yes
- Description IC MTR DRV BIPOLAR 5.5-46V 36QFN
- Classification Motor Drivers, Controllers
-
PDF
Inventory:12152
Technical Details

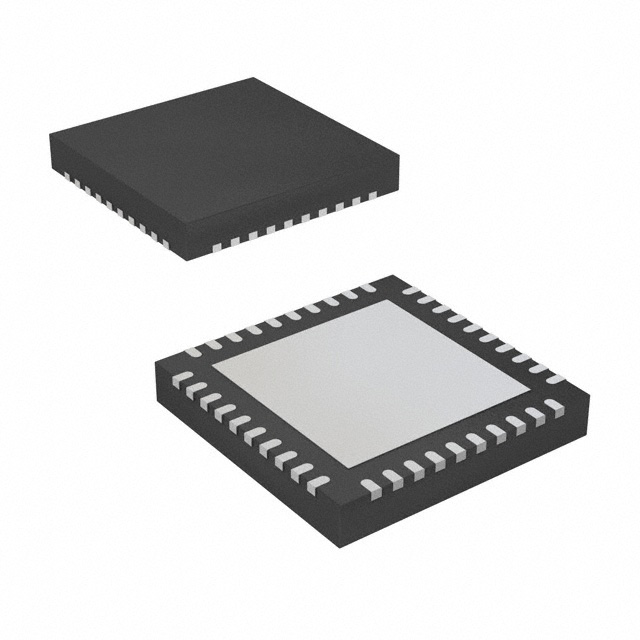

- Package / Case 36-VFQFN Exposed Pad
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 1.2A
- Interface SPI, Step/Direction
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration Half Bridge (4)
- Voltage - Supply 5.5V ~ 46V
- Applications General Purpose
- Technology Power MOSFET
- Voltage - Load 5.5V ~ 46V
- Supplier Device Package 36-QFN (5x6)
- Motor Type - Stepper Bipolar
- Step Resolution 1 ~ 1/256
