- Product Model LTC4440AHMS8E-5#PBF
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC GATE DRVR HIGH-SIDE 8MSOP
- Classification Gate Drivers
Technical Details

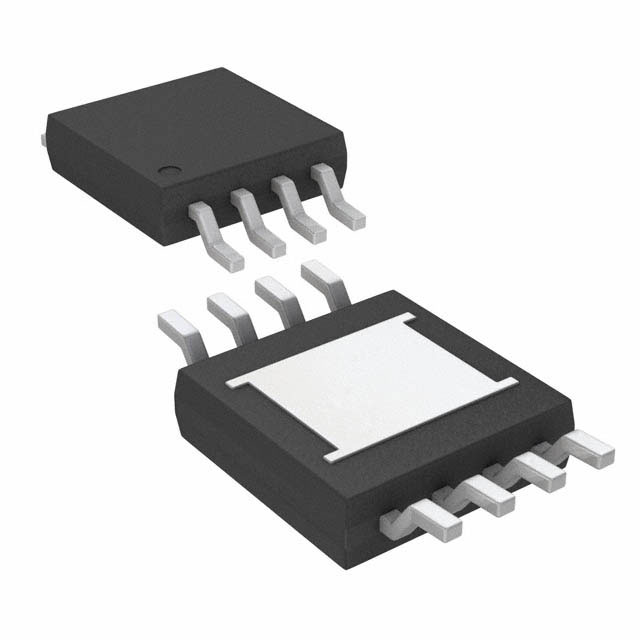

- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 150°C (TJ)
- Voltage - Supply 4V ~ 15V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 80 V
- Supplier Device Package 8-MSOP-EP
- Rise / Fall Time (Typ) 10ns, 7ns
- Channel Type Single
- Driven Configuration High-Side
- Number of Drivers 1
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.2V, 1.6V
- Current - Peak Output (Source, Sink) 1.1A, 1.1A
- DigiKey Programmable Not Verified
