- Product Model UCC27211ADRMT
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8VSON
- Classification Gate Drivers
Technical Details

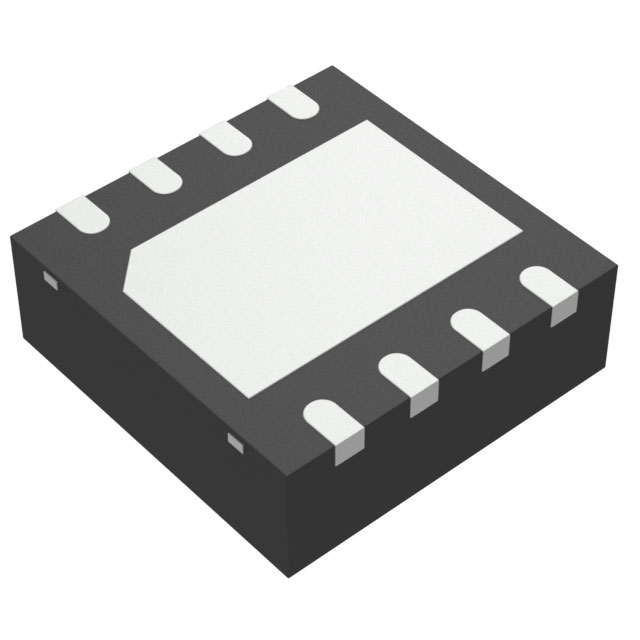

- Package / Case 8-VDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 140°C (TJ)
- Voltage - Supply 8V ~ 17V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 120 V
- Supplier Device Package 8-VSON (4x4)
- Rise / Fall Time (Typ) 7.2ns, 5.5ns
- Channel Type Independent
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 1.3V, 2.7V
- Current - Peak Output (Source, Sink) 4A, 4A
- DigiKey Programmable Not Verified
