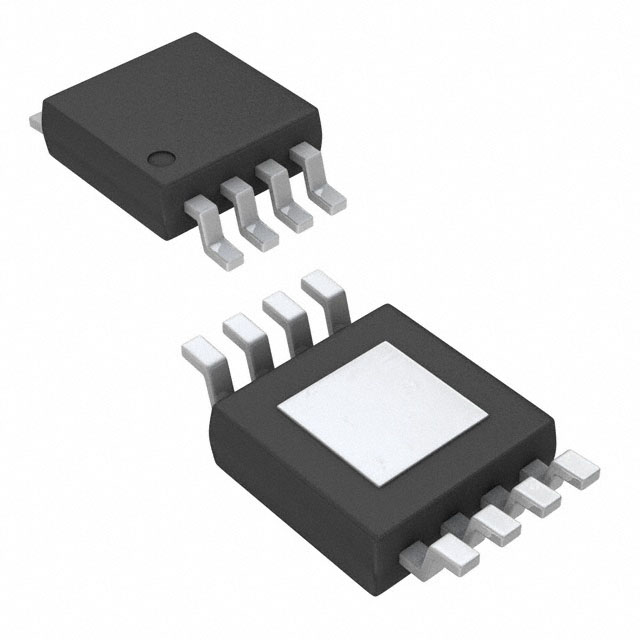

- Product Model UCC27323DGN
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8MSOP
- Classification Gate Drivers
-
PDF
Inventory:2180
Technical Details
- Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 4.5V ~ 15V
- Input Type Inverting
- Supplier Device Package 8-HVSSOP
- Rise / Fall Time (Typ) 20ns, 15ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 1V, 2V
- Current - Peak Output (Source, Sink) 4A, 4A
- DigiKey Programmable Not Verified
