- Product Model AP2141DWG-7
- Brand Zetex Semiconductors (Diodes Inc.)
- RoHS Yes
- Description IC PWR SWITCH P-CHAN 1:1 SOT25
- Classification Power Distribution Switches, Load Drivers
Technical Details
- Features Load Discharge, Status Flag

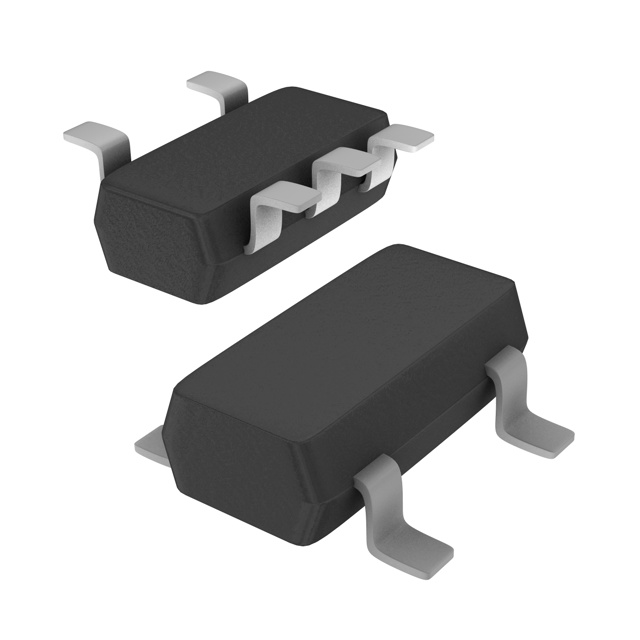

- Package / Case SC-74A, SOT-753
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type USB Switch
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 95mOhm
- Input Type Non-Inverting
- Voltage - Load 2.7V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 500mA
- Ratio - Input:Output 1:1
- Supplier Device Package SOT-25
- Fault Protection Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
