Technical Details

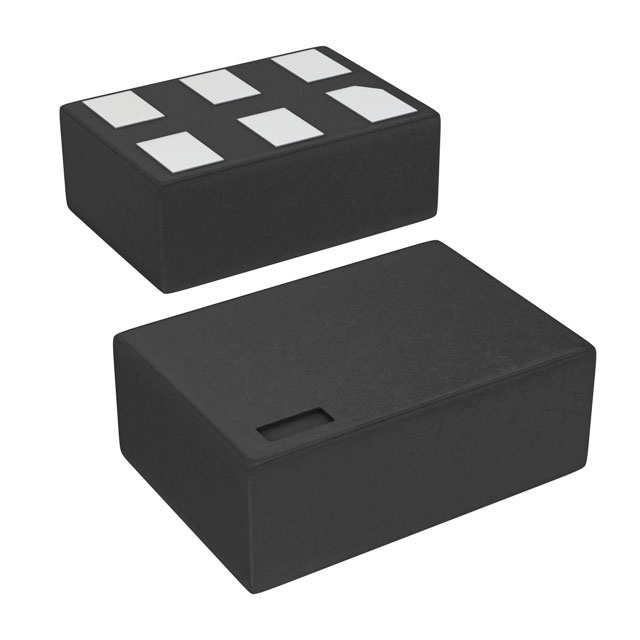

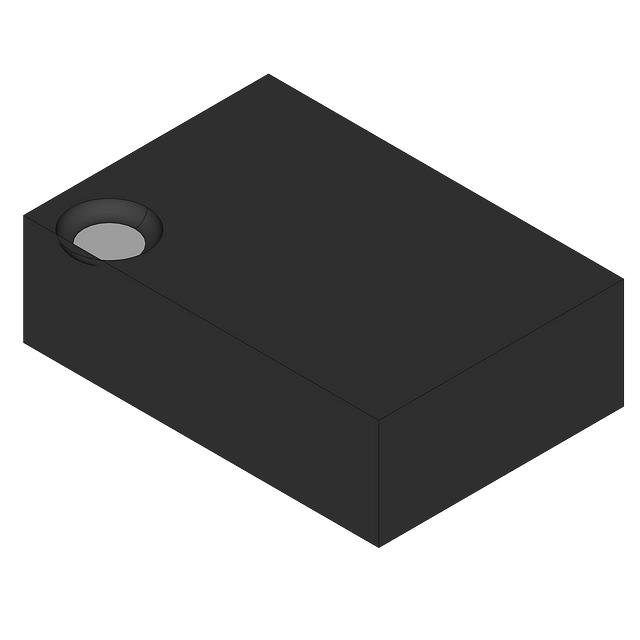

• Package / Case 8-TFSOP (0.049", 1.25mm Width)
• Output Type Rail-to-Rail
• Mounting Type Surface Mount
• Amplifier Type General Purpose
• Operating Temperature -40°C ~ 125°C
• Current - Supply 650µA (x2 Channels)
• Slew Rate 7V/µs
• Gain Bandwidth Product 15 MHz
• Current - Input Bias 0.01 pA
• Voltage - Input Offset 10 µV
• Supplier Device Package SC-70-8
• Number of Circuits 2
• Current - Output / Channel 50 mA
• Voltage - Supply Span (Min) 1.8 V
• Voltage - Supply Span (Max) 5.5 V
