- Product Model CD74HC7046AE
- Brand Texas Instruments
- RoHS Yes
- Description IC PHASE LOCK LOOP 16DIP
- Classification Clock Generators, PLLs, Frequency Synthesizers
-
PDF
Technical Details
- Package / Case 16-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Output CMOS
- Frequency - Max 38MHz
- Type Phase Lock Loop (PLL)
- Input CMOS
- Operating Temperature -55°C ~ 125°C
- Voltage - Supply 2V ~ 6V
- Ratio - Input:Output 1:2
- Differential - Input:Output No/No
- Supplier Device Package 16-PDIP
- PLL Yes
- Divider/Multiplier No/No
- Number of Circuits 1
- DigiKey Programmable Not Verified
Related Products
IC PHASE LOCK LOOP 16DIP
Inventory: 1845
IC BUFFER NON-INVERT 6V 14DIP
Inventory: 1054
IC BUFFER NON-INVERT 6V 14DIP
Inventory: 48588
IC DECADE COUNTER DL 4BIT 16DIP
Inventory: 604
IC PHASE LOCK LOOP 16DIP
Inventory: 1279
IC PHASE LOCK LOOP 16DIP
Inventory: 24414
CD74HC4046A HIGH SPEED CMOS LOGI
Inventory: 3267
IC FF D-TYPE DUAL 1BIT 14DIP
Inventory: 1468
IC FF D-TYPE DUAL 1BIT 14DIP
Inventory: 6047

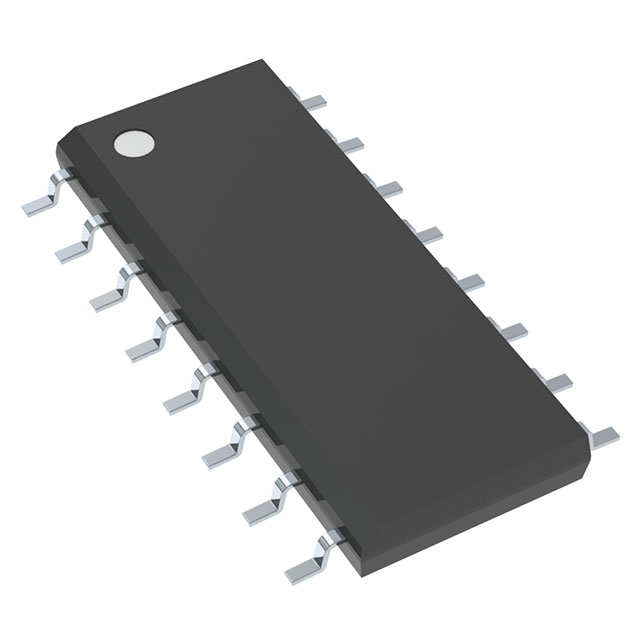

IC PHASE LOCK LOOP 16SOIC
