Technical Details

• Features Schmitt Trigger

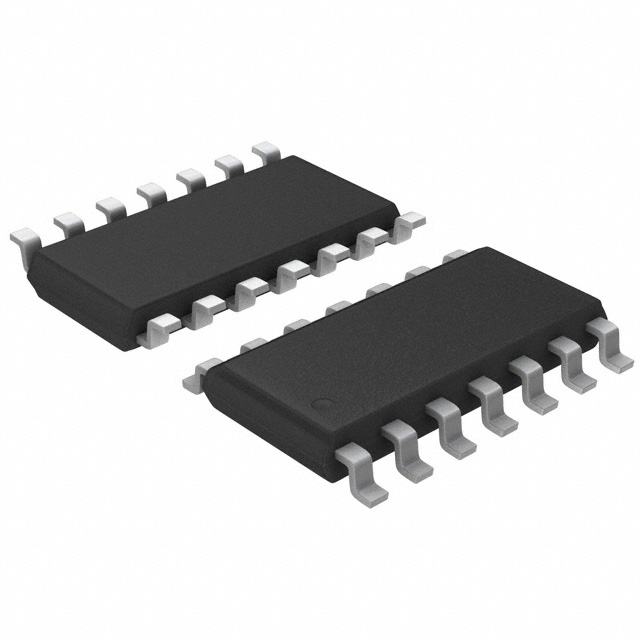

• Package / Case 14-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Logic Type NOR Gate
• Operating Temperature -40°C ~ 85°C
• Voltage - Supply 2V ~ 6V
• Current - Output High, Low 5.2mA, 5.2mA
• Number of Inputs 2
• Supplier Device Package 14-SOIC
• Input Logic Level - High 1.5V ~ 4.2V
• Input Logic Level - Low 0.3V ~ 1.2V
• Max Propagation Delay @ V, Max CL 22ns @ 6V, 50pF
• Number of Circuits 4
• Current - Quiescent (Max) 2 µA
