Technical Details

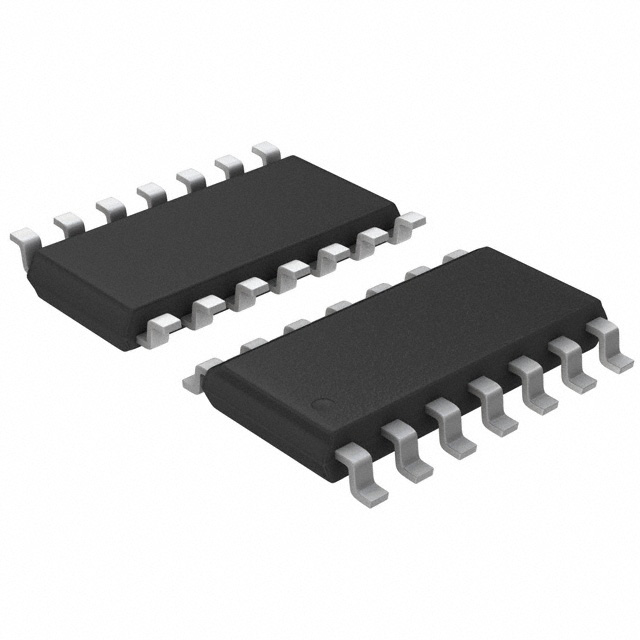

• Package / Case 14-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Logic Type NAND Gate
• Operating Temperature -55°C ~ 125°C
• Voltage - Supply 1.5V ~ 5.5V
• Current - Output High, Low 24mA, 24mA
• Number of Inputs 2
• Supplier Device Package 14-SOIC
• Input Logic Level - High 1.2V ~ 3.85V
• Input Logic Level - Low 0.3V ~ 1.65V
• Max Propagation Delay @ V, Max CL 7.3ns @ 5V, 50pF
• Number of Circuits 4
• Current - Quiescent (Max) 4 µA
