Technical Details

• Features Schmitt Trigger

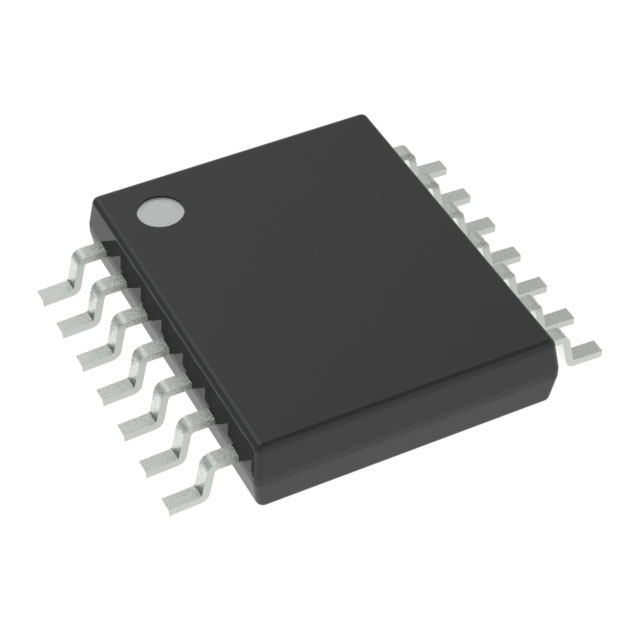

• Package / Case 14-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Logic Type NAND Gate
• Operating Temperature -40°C ~ 125°C (TA)
• Voltage - Supply 2V ~ 5.5V
• Current - Output High, Low 12mA, 12mA
• Number of Inputs 2
• Supplier Device Package 14-TSSOP
• Input Logic Level - High 1.75V ~ 3.5V
• Input Logic Level - Low 0.75V ~ 1.5V
• Max Propagation Delay @ V, Max CL 9.7ns @ 5V, 50pF
• Number of Circuits 4
• Current - Quiescent (Max) 20 µA
