Technical Details

• Features Auto Restart

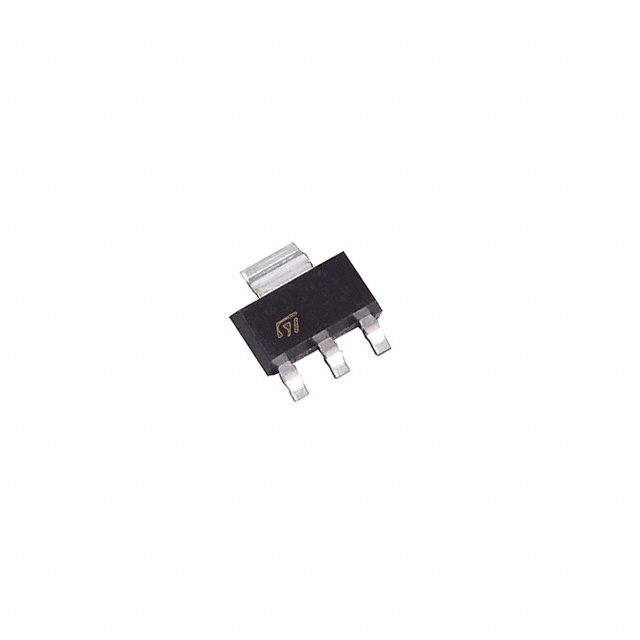

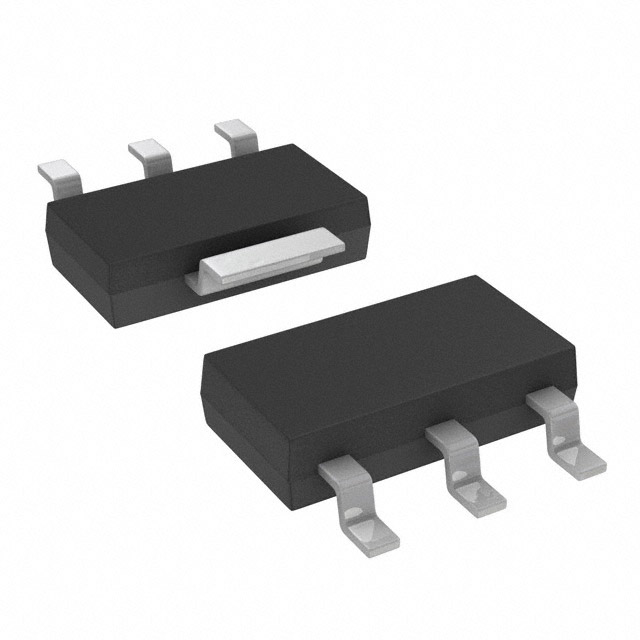

• Package / Case TO-261-4, TO-261AA
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 1
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration Low Side
• Rds On (Typ) 90mOhm
• Input Type Non-Inverting
• Voltage - Load 42V (Max)
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 6A
• Ratio - Input:Output 1:1
• Supplier Device Package SOT-223 (TO-261)
• Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Grade Automotive
• Qualification AEC-Q100
