- Product Model SN74AHCT1G00DBVR
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE NAND 1CH 2-INP SOT23-5
- Classification Gates and Inverters
-
PDF
Technical Details

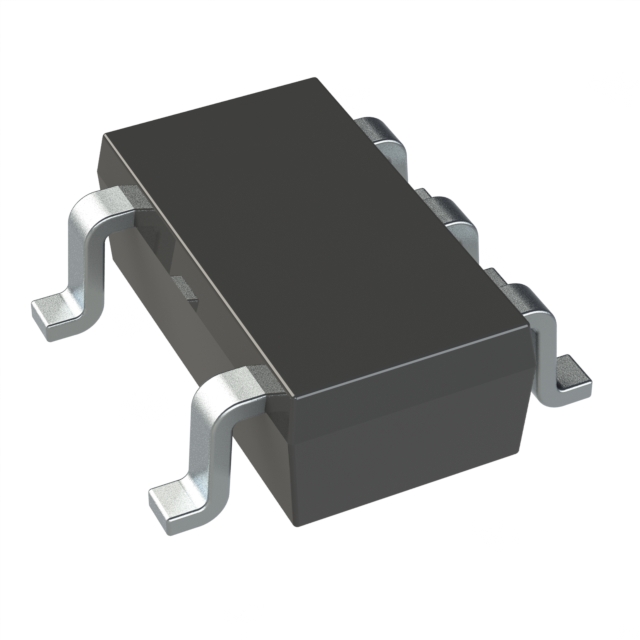

- Package / Case SC-74A, SOT-753
- Mounting Type Surface Mount
- Logic Type NAND Gate
- Operating Temperature -40°C ~ 125°C
- Voltage - Supply 4.5V ~ 5.5V
- Current - Output High, Low 8mA, 8mA
- Number of Inputs 2
- Supplier Device Package SOT-23-5
- Input Logic Level - High 2V
- Input Logic Level - Low 0.8V
- Max Propagation Delay @ V, Max CL 7.9ns @ 5V, 15pF
- Number of Circuits 1
- Current - Quiescent (Max) 1 µA
