- Product Model DRV8805DW
- Brand Texas Instruments
- RoHS Yes
- Description IC MTR DRV UNIPLR 8.2-60V 20SOIC
- Classification Motor Drivers, Controllers
-
PDF
Technical Details

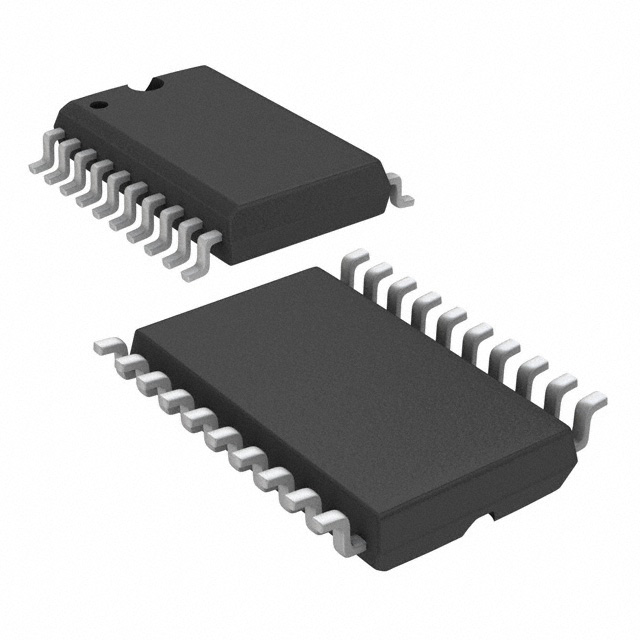

- Package / Case 20-SOIC (0.295", 7.50mm Width)
- Mounting Type Surface Mount
- Function Driver - Fully Integrated, Control and Power Stage
- Current - Output 800mA
- Interface Logic
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side (4)
- Voltage - Supply 8.2V ~ 60V
- Applications General Purpose
- Technology Power MOSFET
- Voltage - Load 8.2V ~ 60V
- Supplier Device Package 20-SOIC
- Motor Type - Stepper Unipolar
- Motor Type - AC, DC Brushed DC
- Step Resolution 1, 1/2
Related Products

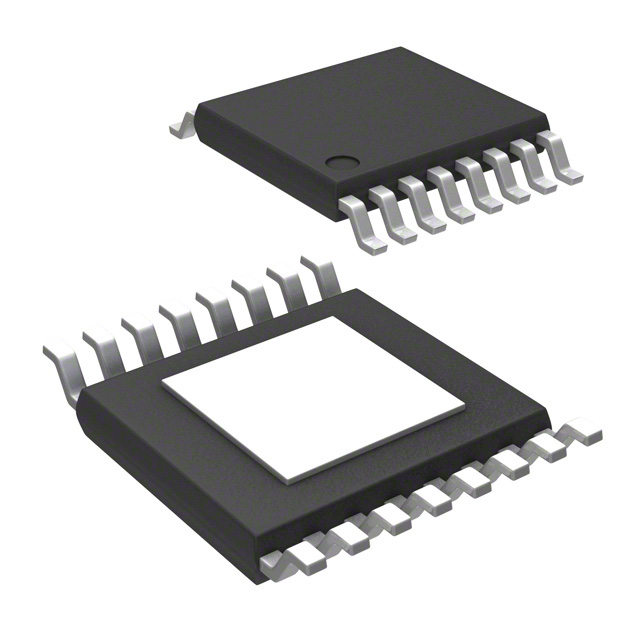

IC MTR DRV UNIPLR 8.20V 16HTSSOP
