- Product Model NCP380HMU05AATBG
- Brand Sanyo Semiconductor/onsemi
- RoHS Yes
- Description IC PWR SWITCH P-CHAN 1:1 6UDFN
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Enable Input High, Slew Rate Controlled, Status Flag

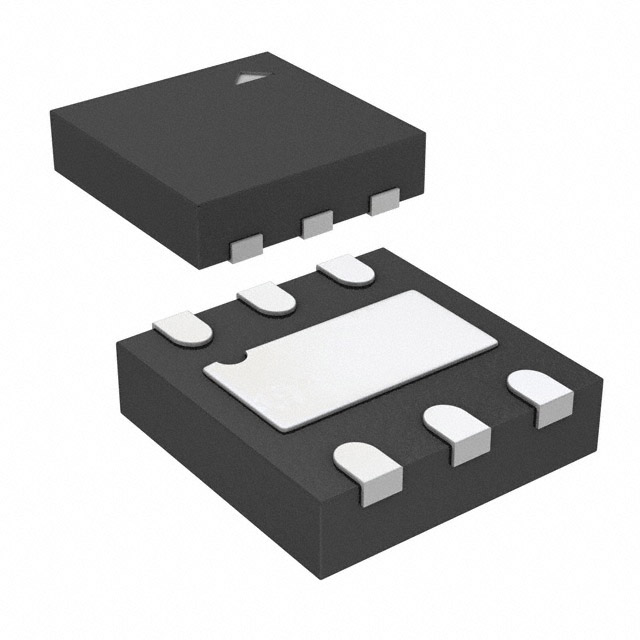

- Package / Case 6-UDFN Exposed Pad
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 85°C (TA)
- Output Configuration High Side
- Rds On (Typ) 55mOhm
- Input Type Non-Inverting
- Voltage - Load 2.5V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 500mA
- Ratio - Input:Output 1:1
- Supplier Device Package 6-UDFN (2x2)
- Fault Protection Current Limiting (Fixed), UVLO
