Technical Details

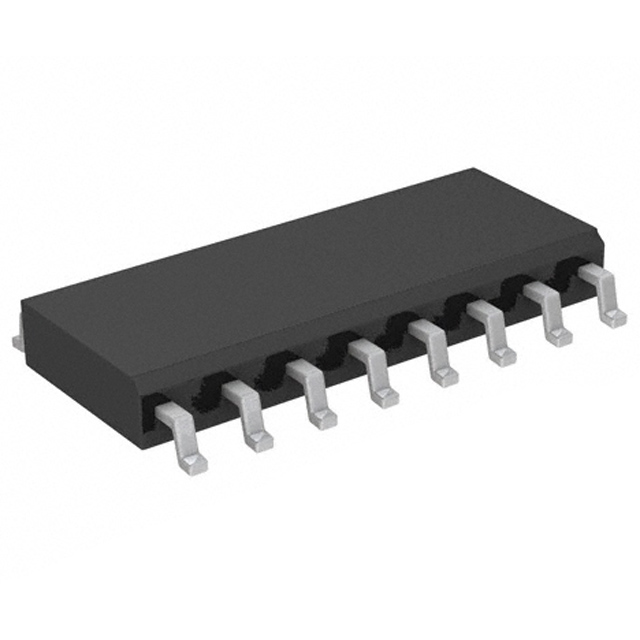

• Package / Case 16-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 85Ohm
• Supplier Device Package 16-SOIC
• Voltage - Supply, Single (V+) 4V ~ 44V
• Voltage - Supply, Dual (V±) ±4V ~ 22V
• Charge Injection 1pC
• Crosstalk -95dB @ 100kHz
• Switch Circuit SPST - NC
• Multiplexer/Demultiplexer Circuit 1:1
• Channel-to-Channel Matching (ΔRon) 1.7Ohm
• Switch Time (Ton, Toff) (Max) 200ns, 150ns
• Channel Capacitance (CS(off), CD(off)) 5pF, 5pF
• Current - Leakage (IS(off)) (Max) 500pA
• Number of Circuits 4
