- Product Model ISL55110IRZ-T7A
- Brand Intersil (Renesas Electronics Corporation)
- RoHS Yes
- Description IC HALF BRIDGE DRVR 100MA 16QFN
- Classification Full Half-Bridge (H Bridge) Drivers
-
PDF
Technical Details

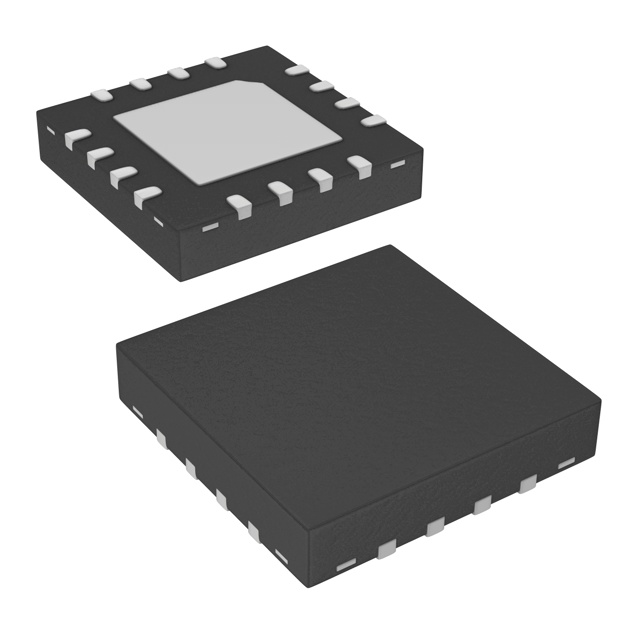

- Package / Case 16-TFQFN Exposed Pad
- Mounting Type Surface Mount
- Interface Logic
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Half Bridge (2)
- Voltage - Supply 2.7V ~ 5.5V
- Rds On (Typ) 3Ohm
- Applications Digital Imaging
- Current - Output / Channel 100mA
- Current - Peak Output 3.5A
- Technology Power MOSFET
- Voltage - Load 5V ~ 13.2V
- Supplier Device Package 16-QFN (4x4)
- Load Type Capacitive and Resistive
