- Product Model ADG5412BRUZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC SW SPST-NOX4 10OHM 16TSSOP
- Classification Analog Switches, Multiplexers, Demultiplexers
-
PDF
Technical Details

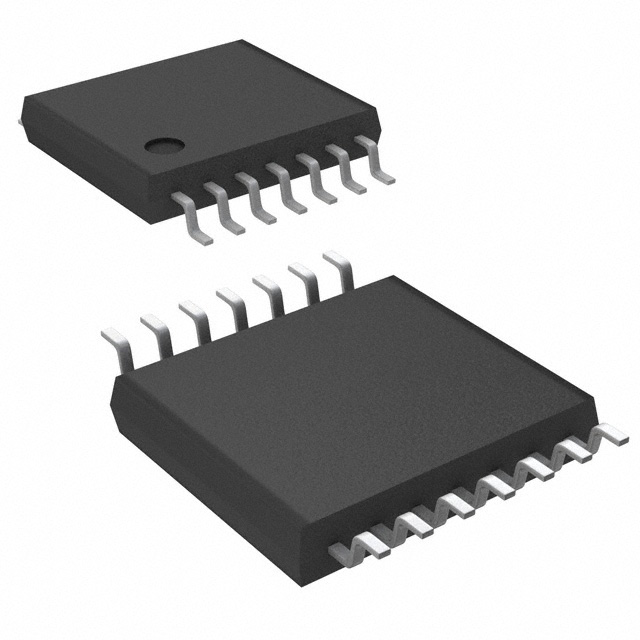

- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TA)
- On-State Resistance (Max) 10Ohm
- -3db Bandwidth 160MHz
- Supplier Device Package 16-TSSOP
- Voltage - Supply, Single (V+) 9V ~ 40V
- Voltage - Supply, Dual (V±) ±9V ~ 22V
- Charge Injection 310pC
- Crosstalk -70dB @ 1MHz
- Switch Circuit SPST - NO
- Multiplexer/Demultiplexer Circuit 1:1
- Channel-to-Channel Matching (ΔRon) 350mOhm
- Switch Time (Ton, Toff) (Max) 187ns, 138ns
- Channel Capacitance (CS(off), CD(off)) 17pF, 17pF
- Current - Leakage (IS(off)) (Max) 250pA
- Number of Circuits 4
