- Product Model AD5542ABCPZ-REEL7
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 16BIT V-OUT 16LFCSP
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details

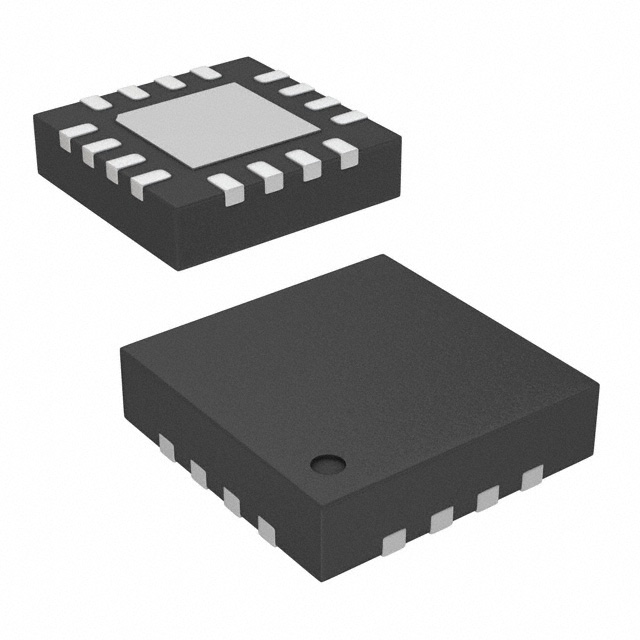

- Package / Case 16-WFQFN Exposed Pad, CSP
- Output Type Voltage - Unbuffered
- Mounting Type Surface Mount
- Number of Bits 16
- Data Interface SPI, DSP
- Reference Type External
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 2.7V ~ 5.5V
- Voltage - Supply, Digital 2.7V ~ 5.5V
- Settling Time 1µs (Typ)
- Supplier Device Package 16-LFCSP (3x3)
- Architecture R-2R
- Number of D/A Converters 1
- INL/DNL (LSB) ±0.5, ±0.5
- Differential Output No
- DigiKey Programmable Not Verified
