- Product Model IXDI614PI
- Brand Wickmann / Littelfuse
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8DIP
- Classification Gate Drivers
-
PDF
Technical Details

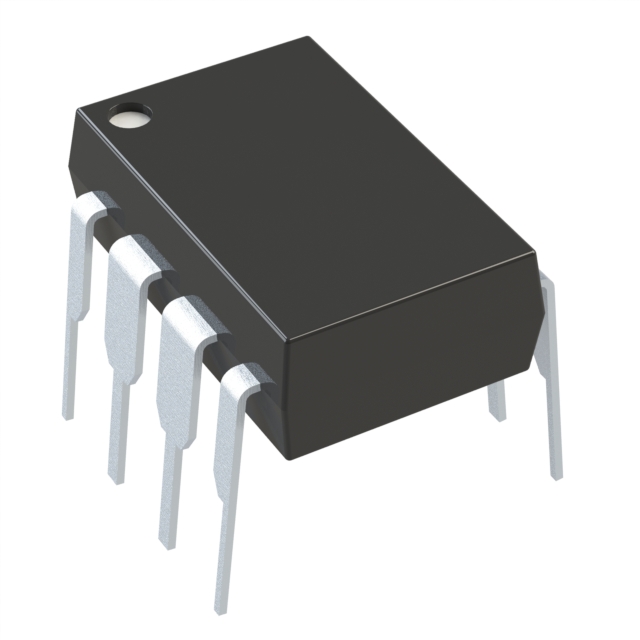

- Package / Case 8-DIP (0.300", 7.62mm)
- Mounting Type Through Hole
- Operating Temperature -55°C ~ 150°C (TJ)
- Voltage - Supply 4.5V ~ 35V
- Input Type Inverting
- Supplier Device Package 8-DIP
- Rise / Fall Time (Typ) 25ns, 18ns
- Channel Type Single
- Driven Configuration Low-Side
- Number of Drivers 1
- Gate Type IGBT, N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 0.8V, 3V
- Current - Peak Output (Source, Sink) 14A, 14A
- DigiKey Programmable Not Verified
