- Product Model VNL5050S5TR-E
- Brand STMicroelectronics
- RoHS Yes
- Description IC PWR DRIVER N-CHANNEL 1:1 8SO
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Auto Restart, Status Flag

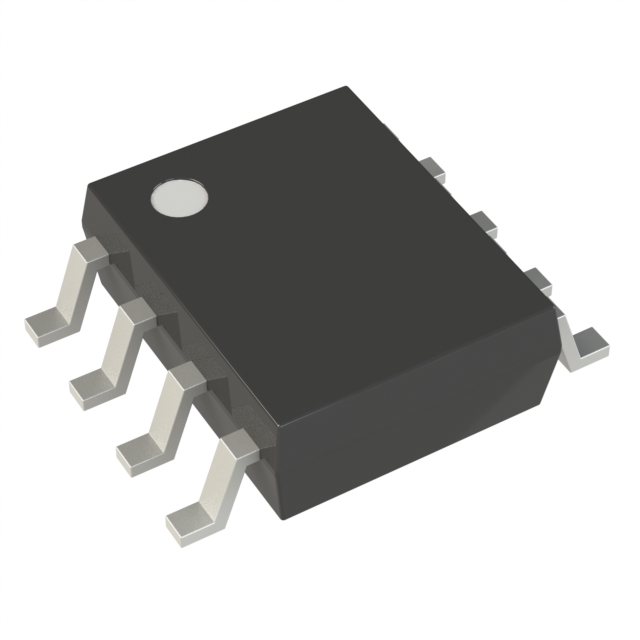

- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side
- Rds On (Typ) 50mOhm (Max)
- Input Type Non-Inverting
- Voltage - Load 36V (Max)
- Voltage - Supply (Vcc/Vdd) 3.5V ~ 5.5V
- Current - Output (Max) 19A
- Ratio - Input:Output 1:1
- Supplier Device Package 8-SOIC
- Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Related Products
IC PWR SWTCH P-CHAN 1:1 20HTSSOP
Inventory: 4304
IC REG LINEAR 5V 50MA 8SO
Inventory: 4176
IC MTR DRV 5.5-24V MULTIPWRSO-30
Inventory: 6292
IC MOTOR DRVR 4V-28V 36POWERSSO
Inventory: 3319
IC MOTOR DRIVER 4V-28V 16SO
Inventory: 2261
IC PWR DRIVER N-CHANNEL 1:1 8SO
Inventory: 4965
IC PWR DRIVER N-CHANNEL 1:1 8SO
Inventory: 0
IC PWR DRIVER N-CHANNEL 1:1 8SO
Inventory: 5717

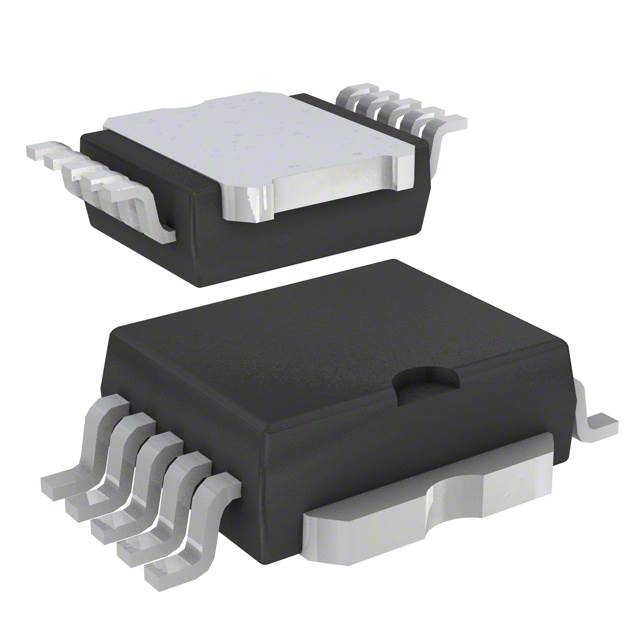

IC PWR DRVR N-CHAN 1:1 PWRSSO12
