Technical Details

• Features Bootstrap Circuit, Status Flag

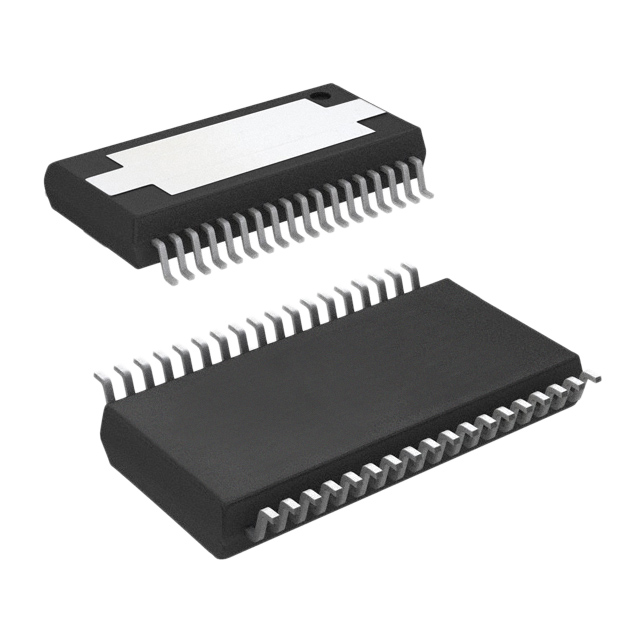

• Package / Case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
• Mounting Type Surface Mount
• Interface PWM
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration Half Bridge (3)
• Voltage - Supply 10.8V ~ 13.2V
• Rds On (Typ) 80mOhm LS, 80mOhm HS
• Applications DC Motors, General Purpose
• Current - Output / Channel 8A
• Current - Peak Output 13A
• Technology Power MOSFET
• Voltage - Load 0V ~ 52.5V
• Supplier Device Package 36-HSSOP
• Fault Protection Current Limiting, Over Temperature, Short Circuit, UVLO
• Load Type Inductive
