- Product Model TPS2556DRBR
- Brand Texas Instruments
- RoHS Yes
- Description IC PWR SWITCH N-CHAN 1:1 8SON
- Classification Power Distribution Switches, Load Drivers
-
PDF
Inventory:9125
Technical Details
- Features Slew Rate Controlled, Status Flag

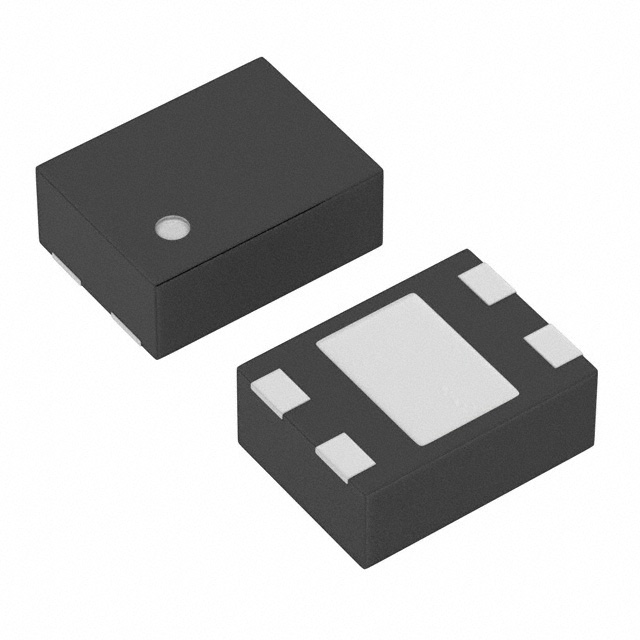

- Package / Case 8-VDFN Exposed Pad
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 22mOhm
- Input Type Non-Inverting
- Voltage - Load 2.5V ~ 6.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 500mA
- Ratio - Input:Output 1:1
- Supplier Device Package 8-SON (3x3)
- Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
