- Product Model LTC4449IDCB#TRPBF
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC GATE DRVR HALF-BRIDGE 8DFN
- Classification Gate Drivers
-
PDF
Technical Details

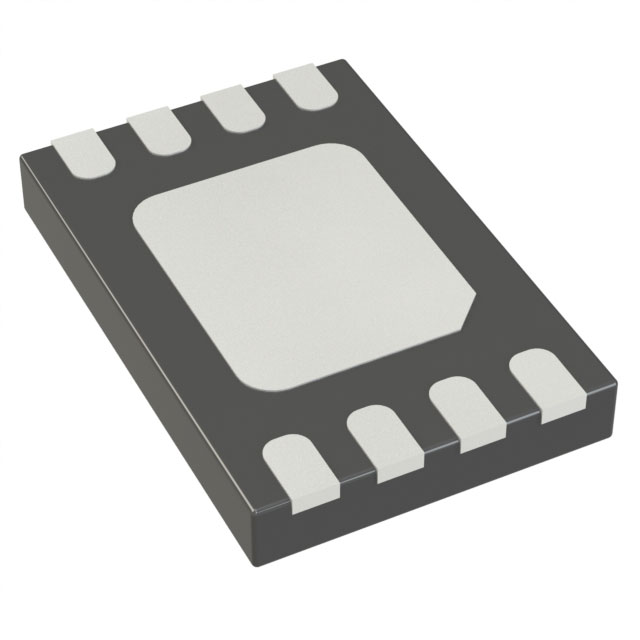

- Package / Case 8-WFDFN Exposed Pad
- Mounting Type Surface Mount
- Operating Temperature -40°C ~ 125°C (TJ)
- Voltage - Supply 4V ~ 6.5V
- Input Type Non-Inverting
- High Side Voltage - Max (Bootstrap) 42 V
- Supplier Device Package 8-DFN (2x3)
- Rise / Fall Time (Typ) 8ns, 7ns
- Channel Type Synchronous
- Driven Configuration Half-Bridge
- Number of Drivers 2
- Gate Type N-Channel MOSFET
- Logic Voltage - VIL, VIH 3V, 6.5V
- Current - Peak Output (Source, Sink) 3.2A, 4.5A
- DigiKey Programmable Not Verified
