- Product Model UCC27423MDREP
- Brand Texas Instruments
- RoHS Yes
- Description IC GATE DRVR LOW-SIDE 8SOIC
- Classification Gate Drivers
-
PDF
Technical Details
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Mounting Type Surface Mount
- Operating Temperature -55°C ~ 125°C (TA)
- Voltage - Supply 4V ~ 15V
- Input Type Inverting
- Supplier Device Package 8-SOIC
- Rise / Fall Time (Typ) 20ns, 15ns
- Channel Type Independent
- Driven Configuration Low-Side
- Number of Drivers 2
- Gate Type N-Channel, P-Channel MOSFET
- Logic Voltage - VIL, VIH 1V, 2V
- Current - Peak Output (Source, Sink) 4A, 4A
- DigiKey Programmable Not Verified
Related Products
IC REG LIN 12V 1.5A DDPAK/TO263
Inventory: 123

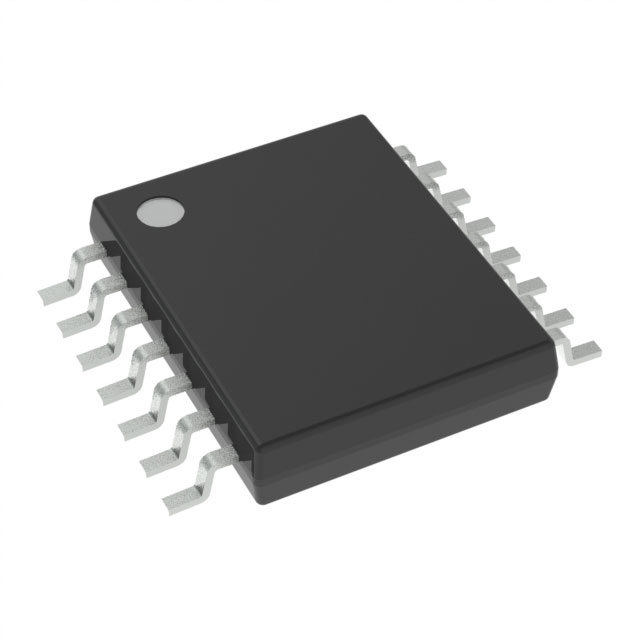

IC INVERTER 6CH 1-INP 14TSSOP
Inventory: 4136

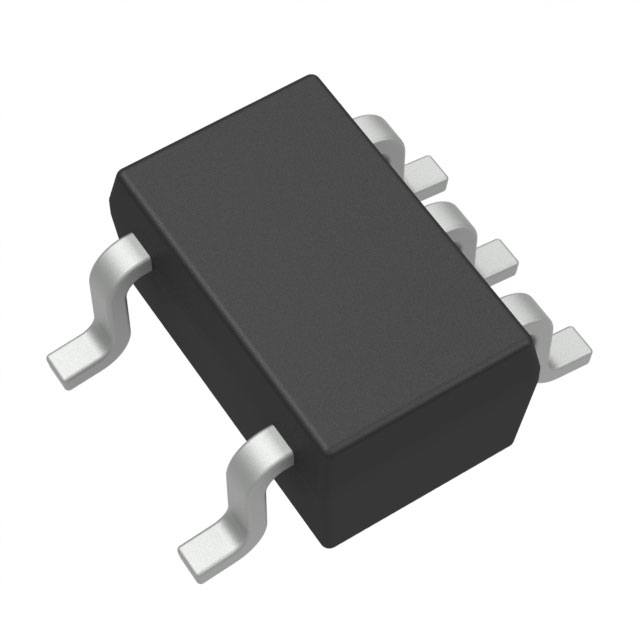

IC GATE AND 1CH 2-INP SC70-5
