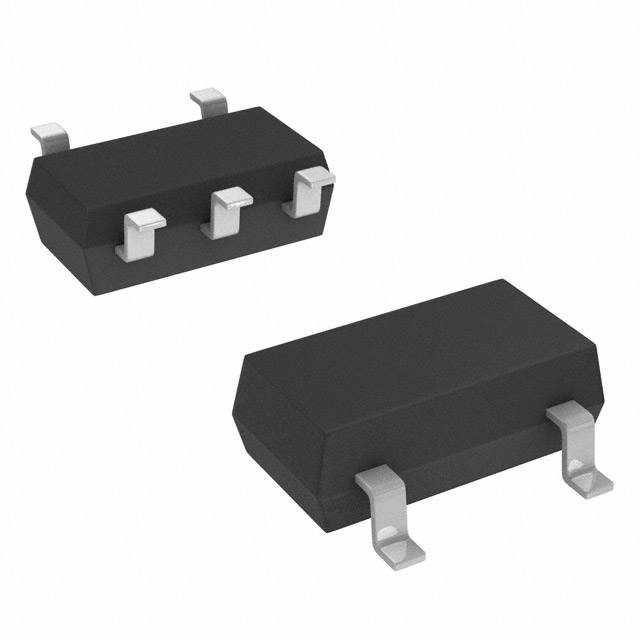

- Product Model TPS22944DCKR
- Brand Texas Instruments
- RoHS Yes
- Description IC PWR SWITCH P-CHAN 1:1 SC70-5
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details

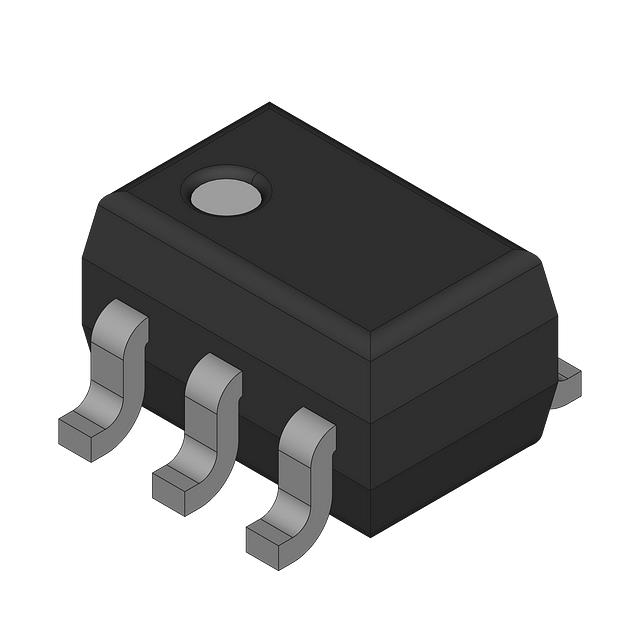

- Package / Case 5-TSSOP, SC-70-5, SOT-353
- Output Type P-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 125°C (TJ)
- Output Configuration High Side
- Rds On (Typ) 400mOhm
- Input Type Non-Inverting
- Voltage - Load 1.62V ~ 5.5V
- Voltage - Supply (Vcc/Vdd) Not Required
- Current - Output (Max) 100mA
- Ratio - Input:Output 1:1
- Supplier Device Package SC-70-5
- Fault Protection Current Limiting (Fixed), Over Temperature, UVLO
