- Product Model LP8543SQE/NOPB
- Brand Texas Instruments
- RoHS Yes
- Description IC LED DRV RGLTR PWM 60MA 24WQFN
- Classification LED Drivers
-
PDF
Technical Details

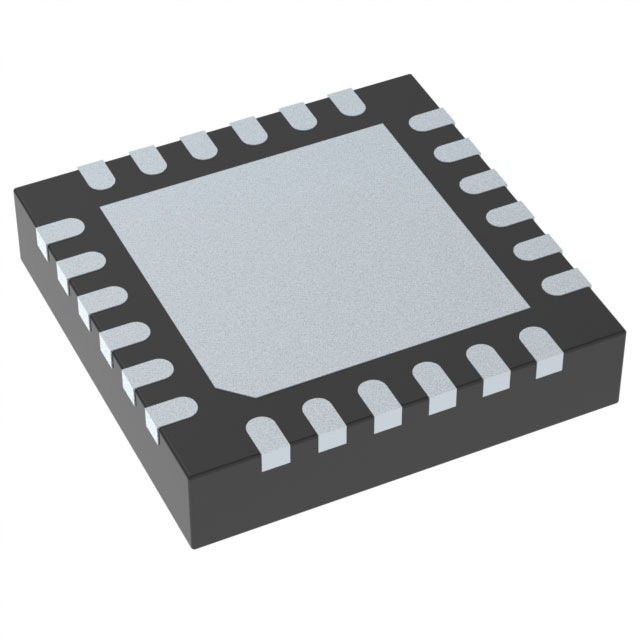

- Package / Case 24-WFQFN Exposed Pad
- Voltage - Output 40V
- Mounting Type Surface Mount
- Number of Outputs 7
- Frequency 625kHz ~ 1.25MHz
- Type DC DC Regulator
- Operating Temperature -30°C ~ 85°C (TA)
- Applications Backlight
- Current - Output / Channel 60mA
- Internal Switch(s) Yes
- Topology Step-Up (Boost)
- Supplier Device Package 24-WQFN (4x4)
- Dimming PWM
- Voltage - Supply (Min) 5.5V
- Voltage - Supply (Max) 22V
