Technical Details

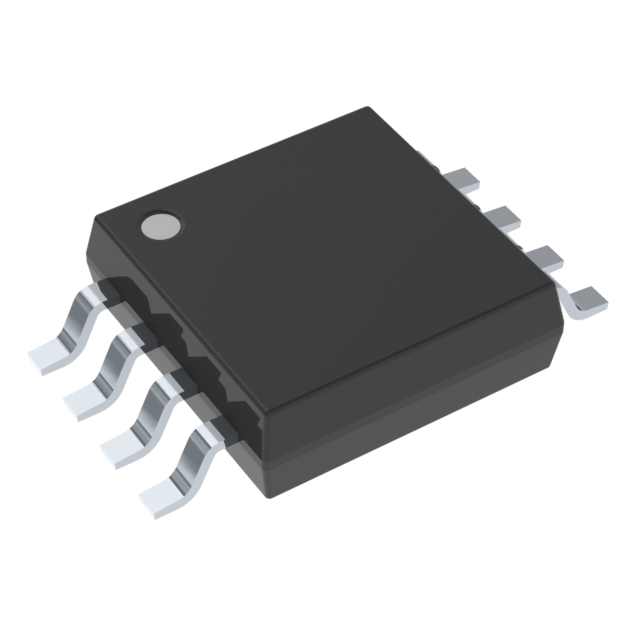

• Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
• Output Type Push-Pull, Rail-to-Rail
• Mounting Type Surface Mount
• Amplifier Type General Purpose
• Operating Temperature -40°C ~ 85°C
• Current - Supply 420µA (x2 Channels)
• Slew Rate 2.1V/µs
• Gain Bandwidth Product 22 MHz
• Current - Input Bias 0.1 pA
• Voltage - Input Offset 70 µV
• Supplier Device Package 8-uMAX/uSOP
• Number of Circuits 2
• Current - Output / Channel 68 mA
• Voltage - Supply Span (Min) 2.4 V
• Voltage - Supply Span (Max) 5.5 V
