- Product Model AD9789BBCZ
- Brand Linear Technology (Analog Devices, Inc.)
- RoHS Yes
- Description IC DAC 14BIT A-OUT 164CSPBGA
- Classification Digital to Analog Converters (DAC)
-
PDF
Technical Details

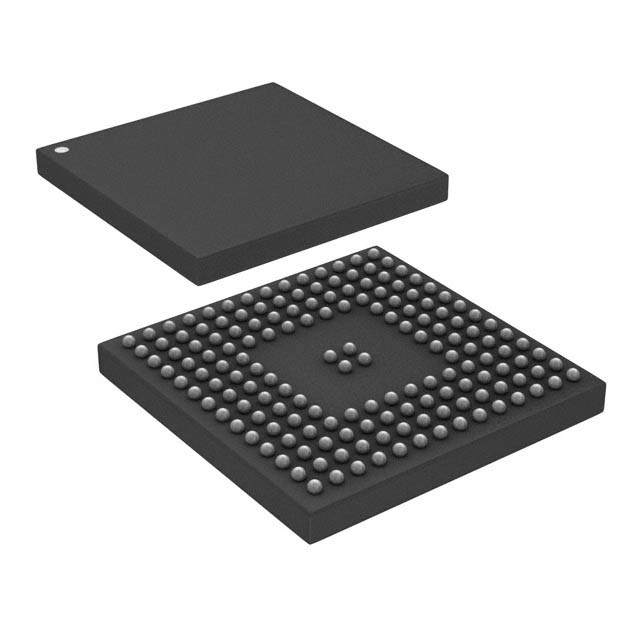

- Package / Case 164-LFBGA, CSPBGA
- Output Type Current - Unbuffered
- Mounting Type Surface Mount
- Number of Bits 14
- Data Interface LVDS - Parallel, Parallel
- Reference Type External, Internal
- Operating Temperature -40°C ~ 85°C
- Voltage - Supply, Analog 3.14V ~ 3.47V
- Voltage - Supply, Digital 1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V
- Settling Time 13ns (Typ)
- Supplier Device Package 164-CSPBGA (12x12)
- Architecture Oversampling Interpolating DAC
- Number of D/A Converters 1
- Differential Output Yes
- DigiKey Programmable Not Verified
Related Products
IC TXRX FULL/HALF 4/4 56QFN
Inventory: 5663
IC CLOCK GENERATOR 64LFCSP
Inventory: 304

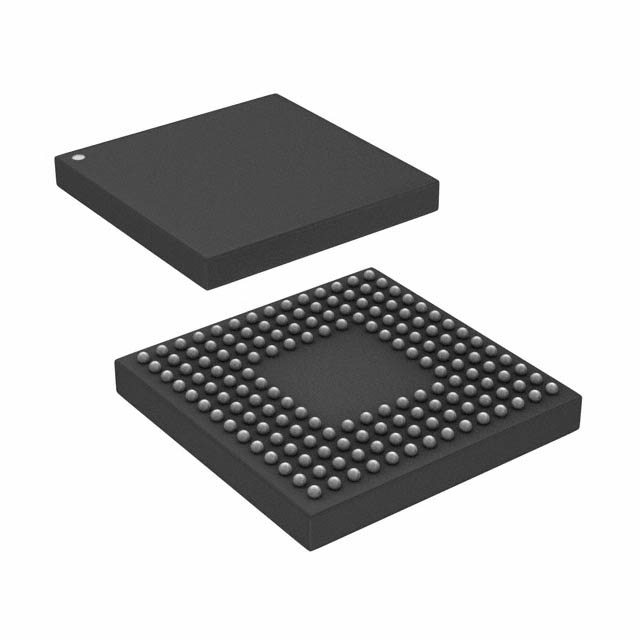

IC DAC 14BIT A-OUT 160CSPBGA
