Technical Details

• Features Auto Restart

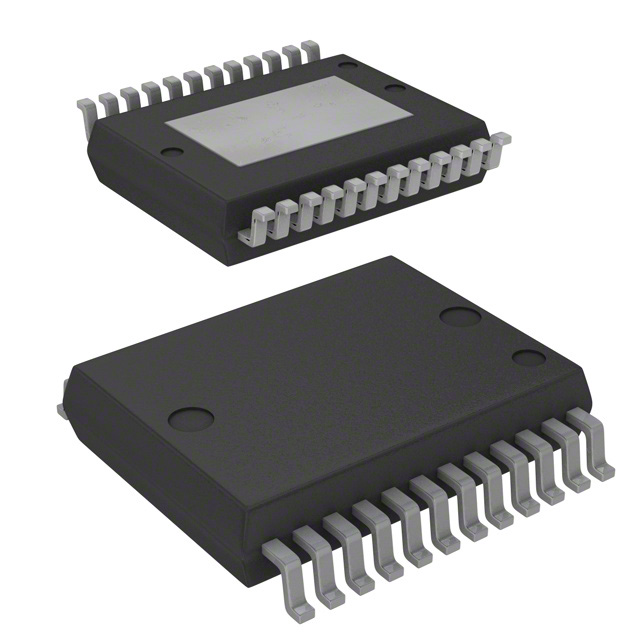

• Package / Case 24-SOP (0.295", 7.50mm Width) Exposed Pad
• Output Type N-Channel
• Mounting Type Surface Mount
• Number of Outputs 4
• Interface On/Off
• Switch Type General Purpose
• Operating Temperature -40°C ~ 150°C (TJ)
• Output Configuration High Side
• Rds On (Typ) 50mOhm (Max)
• Input Type Non-Inverting
• Voltage - Load 4.5V ~ 28V
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 19A
• Ratio - Input:Output 1:1
• Supplier Device Package PowerSSO-24™
• Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
