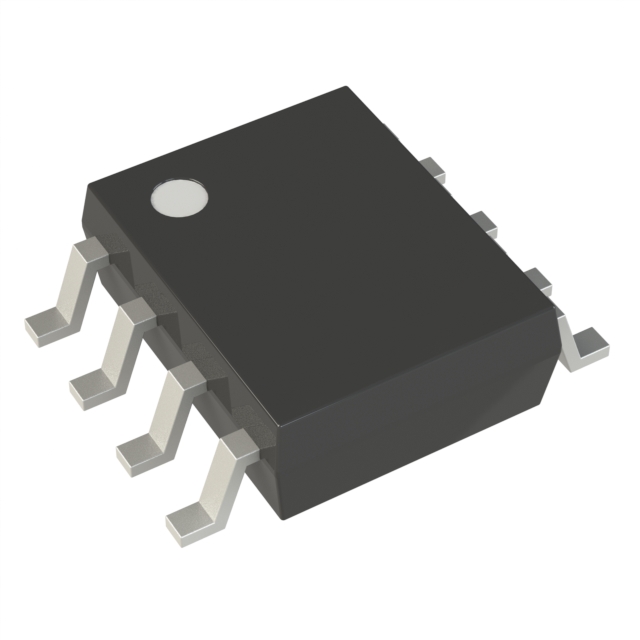

- Product Model VNL5160S5TR-E
- Brand STMicroelectronics
- RoHS Yes
- Description IC PWR SWITCH N-CHANNEL 1:1 8SO
- Classification Power Distribution Switches, Load Drivers
-
PDF
Technical Details
- Features Auto Restart, Status Flag
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Output Type N-Channel
- Mounting Type Surface Mount
- Number of Outputs 1
- Interface On/Off
- Switch Type General Purpose
- Operating Temperature -40°C ~ 150°C (TJ)
- Output Configuration Low Side
- Rds On (Typ) 160mOhm
- Input Type Non-Inverting
- Voltage - Load 36V (Max)
- Voltage - Supply (Vcc/Vdd) 3.5V ~ 5.5V
- Current - Output (Max) 3.5A
- Ratio - Input:Output 1:1
- Supplier Device Package 8-SOIC
- Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
